Cloud Connector war-room — first tool + one proof field

1. Why a Cloud Connector ticket is five commands

Operators collapse five failures into one sentence. The VM never enrolled. The route table never pointed at the Gateway Load Balancer. Traffic Forwarding sent the CIDR Direct. Session Insights is empty because the Location never registered. The private FQDN needed an App Connector. Those are five first clicks.

This page is the night-shift desk for Cloud Connector proof. The cousin lesson teaches which VM to order. Here you learn the five tools you actually open, in order, when someone says the workloads are dark.

Hero · four tiles, one laptop is the wrong picture

2. Mental model — five proof surfaces

Memorise five named objects before you click. Each surface is allowed to prove one thing. Over-claiming a field is how you replace a healthy AMI at 02:00.

3. Decision flow — ticket → first tool

Flowchart first. Do not open the Traffic Forwarding editor until a diamond says so.

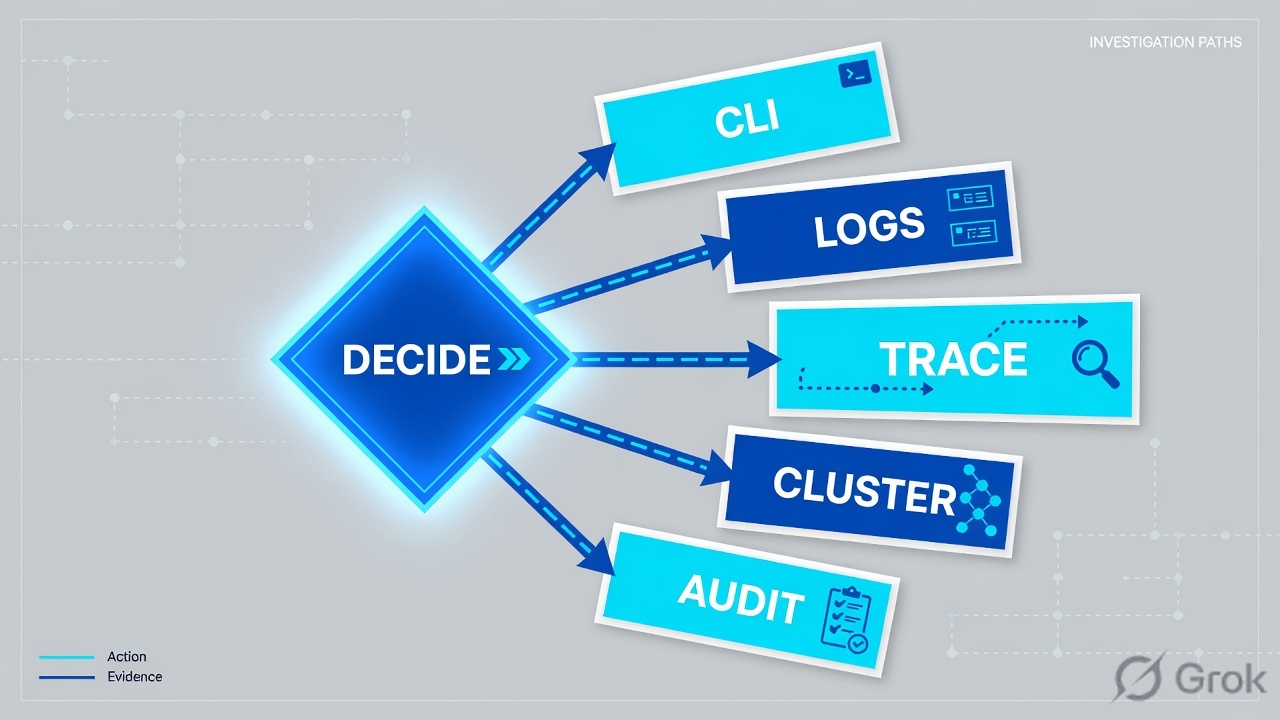

Path · pick the branch before the menu

4. How to choose — first tool + proof field

Print this next to the Cloud & Branch Connector Admin Portal. If you cannot recite the proof field, you are not ready to change anything.

5. Runbook Side A → B → C

Side A proves the VM enrolled and is healthy. Side B proves the VPC path and the Traffic Forwarding decision. Side C proves the transaction in Insights. On a messy Sev-2, do them in this order until a field lights up.

Side A — Instance health + provisioning

Primary sources: Accessing Cloud & Branch Connector Monitoring; Troubleshooting Cloud Connector with AWS / Azure / GCP; Deploying Zscaler Cloud Connector (API key + Cloud Provisioning Template); NSS Feed Output Format: Event Logs.

1. Open Monitoring before you SSH anything

   Official Monitoring page lists name, group, location, geolocation, and status for each Cloud Connector VM. Path used when you edit membership: Infrastructure → Connectors → Cloud → Management → Cloud Connector Groups (Overview or the group). Quote Status and Geolocation for the instance named on the ticket.

2. If Status is Inactive, prove registration — do not replace the AMI yet

   Official Azure / AWS / GCP troubleshooting: Inactive means check registration and policy fetch (Support if both look correct). Confirm the Cloud Connector can reach the Zscaler cloud (NSG / security group / DNS). Quote the Event log: Cloud Connector generates Event logs when a health-check status change occurs.

3. If Geolocation is wrong, prove Public IP + Service Interface

   Official: wrong geolocation → verify outbound NAT and the egress path; confirm Public IP. AWS specifically: associate the Cloud Connector Service Interface with the correct path. A wrong city on the map is a routing/NAT ticket, not a Traffic Forwarding ticket.

4. If the VM is missing entirely, open Provisioning

   Cloud Connector authenticates and registers with the API key. Official deploy path: generate the key, then a Cloud Provisioning Template (creates the provisioning URL). Documented fields include Cloud Connector Group Creation, VM Size (Small / Medium / Large), and Auto Scaling. ASG only with an ASG template; non-ASG only with a non-ASG template. Azure also checks: API key, username/password, provisioning URL with no spaces, template type, Key Vault Get/List, Network Contributor / Microsoft.Network/networkInterfaces/read.

5. Confirm Internet Access Gateway is populated

   Official post-deploy / “unable to monitor” check: in the Admin Console the Internet Access Gateway is populated, Session logs show Cloud Connector self-traffic, and Tunnel Insights is visible. That is the green bar for “the box talks to ZIA.” It is not yet a workload packet.

Path:            Cloud & Branch Connector Monitoring
Quote:           Name + Group + Location + Geolocation + Status
If Inactive:     registration + policy fetch; Event log health-check change
If wrong geo:    Public IP + Service Interface + outbound NAT
If missing VM:   API key + Cloud Provisioning Template type + provisioning URL
Gateway check:   Internet Access Gateway populated · self-traffic in Session logs

Side B — Workload / VPC path + Traffic Forwarding

Primary sources: Deploying Cloud Connector on AWS / Azure / GCP (post-deploy routing); Troubleshooting Cloud Connector (ingress routing); About Traffic Forwarding; Configuring Traffic Forwarding Rules (Direct / Drop / Local; Source Workload Groups are Cloud Connector only).

1. Prove the subnet actually steers to Cloud Connector

   Azure Help: after the VM deploys you must create a routing table and a workload subnet that redirect traffic to the load balancer. AWS Help: Cloud Connector typically sits behind a Gateway Load Balancer (often with Transit Gateway in a hub). GCP Help: send traffic to the deployed Cloud Connector VM. Official troubleshooting always asks for ingress routing to the Cloud Connector before it asks for a policy change.

2. Do not hairpin return through Cloud Connector for inbound internet

   If an internet-facing ALB / public IP is the front door, the workload’s 0.0.0.0/0 must not steal the return path through Cloud Connector NAT. That is the classic asymmetric-routing ticket. Quote the route table for the workload subnet and the exception for the inbound prefix. This is a path proof, not a ZIA URL proof.

3. Open Traffic Forwarding, not a ZIA URL rule

   Help: Traffic Forwarding sends select traffic to specific destinations. You can forward through Internet & SaaS (ZIA), and you can also use Direct, Drop, or Local. Cloud Connector also forwards to Private Access (ZPA) when that is the design. Source Workload Groups are only applicable to Cloud Connector traffic forwarding policies.

4. Quote the matching rule + Workload Group + method

   If a new CIDR or tag-based Workload Group went Direct after last night’s change, that name is the ticket. Do not add a ZIA Cloud App Allow to “fix” a Direct. Do not replace the AMI. Change or reorder the forwarding rule, then re-read Session Insights for that CC VM.

Side C — Session / DNS / Tunnel Insights

Primary sources: Analyzing Traffic Using Insights; About Insights Logs; Session Insights Logs: Columns / Filters; DNS Insights Logs: Columns; Tunnel Insights Logs: Filters; Troubleshooting (“unable to monitor” — Location registered, tunnel logs to Internet & SaaS, use the Internet & SaaS filter).

1. Open Branch and Cloud Connector Insights, not ZIA Web Insights first

   Official path: Logs → Insights → Branch and Cloud Connectors → Tunnel, DNS, or Session Insights. You drill into transactions that passed through the Cloud Connector appliance. A laptop URL Category hunt is the wrong store if the source is an EC2 / VM / GKE pod.

2. Filter the VM, then read the official columns

   Session Insights Filters document CC VM — limit data to the Cloud Connector virtual machine you care about. Session Insights Columns include Application Segment and Cloud Connector Group. DNS Insights Columns include Cloud Connector Group. Quote those names plus the UTC window on the ticket.

3. If Insights is empty, prove Location + filter — do not write a URL Allow

   Official “unable to monitor traffic”: the Cloud Connector Location created in the Admin Console is registered; tunnel logs show traffic to Internet & SaaS; when you filter, you use the Internet & SaaS filter. Also confirm Session logs still show self-traffic (the appliance itself). Empty workload rows + present self-traffic is a path or forwarding ticket, not a dead VM.

4. Use Tunnel Insights for the ZIA hop, DNS Insights for resolution

   The same Insights family has Tunnel and DNS views. A workload that never resolves will not produce the Session you expect. A Cloud Connector that never built the ZIA tunnel will show empty Internet & SaaS tunnel logs even when Monitoring is Active. Quote the Insights type you actually opened.

6. Five tickets as full stories

These five land every quarter. Memorise first tool + proof field. Times and identities below are lab-only.

ZCCN-01 — Prove instance health (Monitoring + Event log)

02:12 · P1. Mumbai Cloud Connector ASG shows InService in AWS. Workloads cannot reach SaaS. L1 wants the AMI replaced.

First tool: Cloud & Branch Connector Monitoring. Quote Name, Group, Location, Geolocation, Status for each AZ member.

If Inactive: official next check is registration and policy fetch, plus Event logs for the health-check status change. Confirm NSG / security group / DNS so the VM can reach the Zscaler cloud. Do not treat an InService EC2 as enrolled.

If missing: open Provisioning. Quote API key presence, Cloud Provisioning Template type (ASG vs non-ASG), and the provisioning URL with no spaces. Azure also needs Key Vault Get/List and the network read role on the user-assigned identity.

ZCCN-02 — Prove the workload / VPC path

02:28 · P1. After a landing-zone route change, subnet 10.8.24.0/22 disappeared from Insights. Sibling subnet 10.8.20.0/22 is fine. Monitoring shows both Cloud Connectors Active. Someone drafted a Traffic Forwarding Allow.

First tool: the cloud route table for that workload subnet. Official deploy guides: redirect the workload subnet to the GWLB / load balancer, not to the NAT Gateway you just put back.

Proof field: the default route target. If it still points at NAT / Internet Gateway, Cloud Connector never saw the packet — Session Insights will stay empty except for self-traffic. Quote the route, the GWLB endpoint or load-balancer target, and the UTC of the route change.

ZCCN-03 — Prove Traffic Forwarding + Workload Group

02:41 · P2. Payments EKS still reaches the internet, but DLP / URL inspection vanished after a Workload Group change. L1 wants a ZIA Cloud App Allow.

First tool: Traffic Forwarding rules that list Source Workload Group lab-payments-eks (Cloud Connector-only criterion). Read the forwarding method.

Proof field: method = Direct (or Drop / Local) on the new group. Direct is a successful bypass, not a broken VM. Internet & SaaS is the method that puts the flow on ZIA. Quote the rule name + group + method. Then Session Insights will explain the empty inspect trail.

ZCCN-04 — Prove the transaction (Session Insights)

02:55 · P2. Platform: “Zscaler has no logs.” Monitoring is Active. Route table is correct. Traffic Forwarding is Internet & SaaS. L1 opened ZIA Web Insights and filtered a user that does not exist.

First tool: Logs → Insights → Branch and Cloud Connectors → Session Insights. Filter CC VM + time. Add Cloud Connector Group. Use the Internet & SaaS filter when that is the hop.

Proof field: a workload row with that CC VM and Cloud Connector Group. If only self-traffic exists, go back to path / forwarding. If even self-traffic is missing, go back to Location registered + Internet Access Gateway + Tunnel Insights. DNS Insights is the sibling when the name never resolves.

ZCCN-05 — Prove you have the right product

03:08 · P2. Two flavours of the same Slack thread. (A) Cloud Connector is Active but crm.internal.example fails. (B) The account bought Zero Trust Gateway and someone is still looking for a Cloud Provisioning Template.

First tool (A): stop. Cloud Connector forwarded the VPC. Private-app brokering is an App Connector (group + provisioning key + User Activity). See App, Branch, Cloud Connector.

First tool (B): the Zero Trust Gateway object (Adding an AWS / GCP Zero Trust Gateway). ZTGW is the managed Cloud Connector service — Zscaler runs the gateway. There is no AMI for you to enroll with an API key.

7. Traps + close-the-ticket proof

Proof · named field, then Closed
