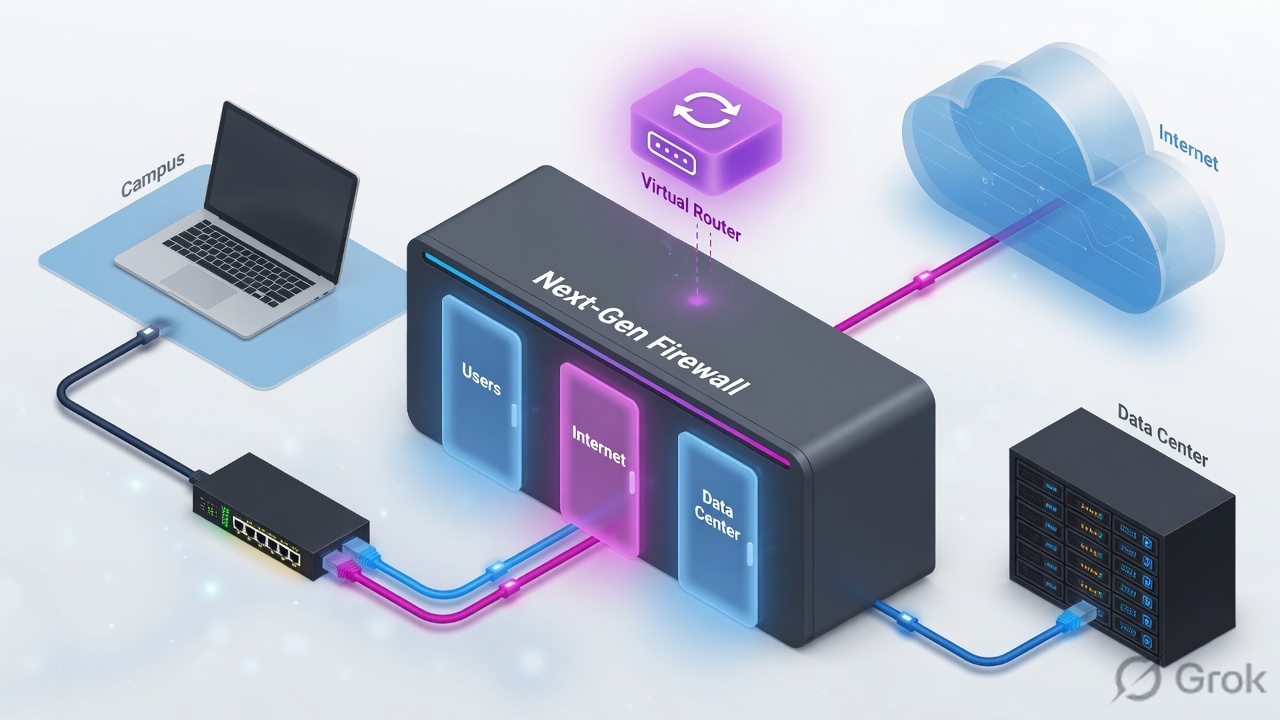

The college-canteen analogy — interface, zone, VR
Imagine a college canteen on a Saturday afternoon. The doors are the entrances and exits — Door 1 from the hostel side, Door 2 from the parking, Door 3 from the library. Those are your interfaces.
The seating sections — Hostel-Boys section, Day-Scholar section, Faculty section — are the zones. A door is bolted to exactly one section. Saying "anyone in Faculty section can serve themselves chai" is a zone-level rule — it doesn't care which door they walked in through.
The floor manager who decides "for somebody asking for North-Indian thali, send them to Counter 4" is the Virtual Router (VR). The manager doesn't care which door you came in through either — they only care about the destination.
Three independent concepts, three different jobs. An interface without a zone is useless. A zone without an interface has nothing to attach to. A VR with no routes black-holes everything. You'll see all three failure modes in production.

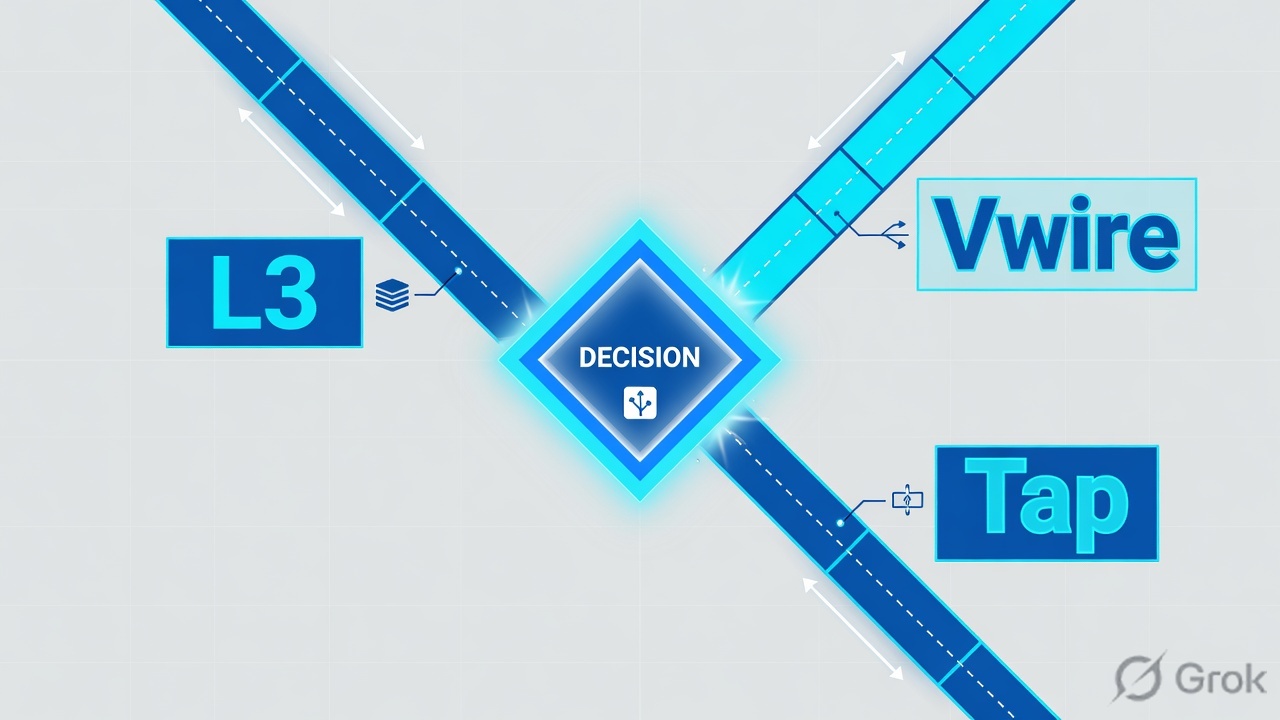

The eight PAN-OS interface modes
The PCNSE blueprint lists eight interface modes you'll meet in the field. You don't need to memorize the binary differences — you need to know which mode fits which deployment.
📍 Scenario · Aditya, network engineer at Wipro Hyderabad
Aditya migrates a branch to a PA-440 sitting between a Cisco access switch and the upstream router. The switch trunks VLAN 10 (corp), VLAN 20 (guest), VLAN 30 (CCTV) on a single uplink. He configures ethernet1/1 as a physical L3 interface — no IP — and creates three Layer-3 sub-interfaces ethernet1/1.10, 1.20, 1.30 with the right tags and IPs. Traffic from VLAN 10 still doesn't flow. What's missing? Every sub-IF needs (a) a security zone (b) a virtual router. Aditya assigned zones but forgot to attach the sub-IFs to VR-default. Five-minute fix; an hour-long ticket.
Security zones — where Palo Alto stops being a Cisco ASA
On a Cisco ASA, rules are written between interfaces (inside to outside) or between security levels. On PAN-OS, rules are written between zones — a logical grouping of one or more interfaces that share the same trust level. This is the biggest single conceptual shift for engineers moving from ASA to PAN-OS.
Three rule scopes exist:
| Rule type | Matches | Default |
|---|---|---|
| Intrazone | Traffic where source zone == destination zone | Allow (predefined — intrazone-default) |
| Interzone | Traffic where source zone ≠ destination zone | Deny (predefined — interzone-default) |
| Universal | Both intra and inter — the rule writer must specify zones | Whatever you set |
The two default rules live at the bottom of every Security Policy. They're read-only by default but you can override them to (a) log their hits and (b) flip their action if your design genuinely needs it. You should always override at least the logging — without it, a flood of denied scans into your DMZ generates zero traffic logs while still costing DP CPU.
From the official PAN-OS Security Policy Best Practices guide: "Avoid 'Any' in source or destination zone fields, as this opens the possibility for the any-any rule to unintentionally allow sessions that are not accounted for." Tight zone scoping is a security-team request, not a paranoia tax — it's audit-defensible.
Virtual routers — RIB, FIB, administrative distance
A Virtual Router is the routing engine inside PAN-OS. Each VR holds its own RIB (every route it has heard from any source) and its own FIB (the chosen best routes that actually get used for forwarding). Most enterprises start with one VR (called default) and only carve out multi-VR designs when isolation is required — guest network, MSSP multi-tenant, DC-vs-internet split.
When a packet arrives, after security policy passes, the VR does an FIB lookup for the destination IP and picks the egress interface. If the destination is reachable through multiple protocols, the route with the lowest administrative distance (AD) wins.
| Protocol | Default AD on PAN-OS | Mnemonic |
|---|---|---|
| Static | 10 | "You typed it — most trusted" |
| eBGP | 20 | External BGP — peer next door |
| OSPF Intra-area | 30 | Inside-network learned |
| OSPF Inter-area | 30 | Same — PAN treats them as one |
| RIP | 120 | Legacy — rarely seen |
| OSPF External (Type 5) | 110 | Redistributed in from elsewhere |
| iBGP | 200 | Inside same AS — least preferred |
These are PAN-OS defaults. They differ from Cisco IOS — Cisco's OSPF AD is 110 across the board and BGP is 20/200 too, but Palo's static is 10 (vs Cisco's 1). The point is you can change them per-route or per-VR globally if your design needs it. Reference: official PAN-OS Networking Admin Guide.
Multi-VR — when one router isn't enough
Most boxes run with a single VR. You only add a second VR when you need logical routing isolation — typically because:
- The guest network must never know any route to the corporate network (zero-trust isolation)
- An MSSP / co-location is running multi-tenant on one firewall and tenants must not see each other's routes
- You're splitting a chassis into multiple vsys instances that each need their own routing
To pass traffic between two VRs on the same firewall you have two options:
- Internal next-VR route — a static route with next-hop set to
next-vrpointing at the other VR. The packet stays inside the firewall, hops between VRs, then egresses. Fast, clean, no extra cabling. - External hairpin — two interfaces, one in each VR, physically cabled to an external switch that loops them. Older design pattern. Use only when next-vr is unavailable or you need an external choke-point.
The asymmetric-routing trap — the L2 interview favourite
Picture a dual-WAN site with two ISP links going into two separate PA interfaces in two separate zones. Outbound traffic chooses ISP1 because of route preference. Return traffic enters via ISP2 (the remote endpoint chose ISP2's NAT'd address). PAN-OS sees the return packet arrive in a different zone than the session was created on — and drops it.
📍 Scenario · Karthik, dual-WAN site at Flipkart Bengaluru
Karthik's branch has two ISP uplinks — Tata Tele and ACT — going into ethernet1/1 (zone untrust-tata) and ethernet1/2 (zone untrust-act). Outbound NAT picks ISP1. Return packets for HTTPS connections to AWS sometimes arrive via ISP2 because AWS chose the second public address. PAN drops them with tcp_out_of_sync incrementing 80/sec. Karthik picks Option A — moves both interfaces into a single zone called untrust-internet with a Zone Protection profile to keep DoS hardening on. Intrazone-default allow lets the asymmetric return packet through; the security policy is unchanged because the zone name match still works. Drops go to zero.
Verification — the four CLI commands every PA engineer runs
Run these in order — they map the physical-to-logical layout of the firewall in 30 seconds.
show interface all
name id speed/duplex/state mac address mode zone vr
ethernet1/1 16 1000/full/up 18:1b:eb:11:22:01 layer3 trust-lan default
ethernet1/2 17 1000/full/up 18:1b:eb:11:22:02 layer3 untrust-wan default
ethernet1/4.10 18 auto/auto/up 18:1b:eb:11:22:04 layer3 guest-vlan default
tunnel.1 -- --/--/up n/a tunnel vpn-s2s default
ethernet1/5 20 auto/auto/up 18:1b:eb:11:22:05 layer3 -- --
^ ZONE / VR MISSING!
show routing route virtual-router default
flags: A:active, ?:loose, C:connect, H:host, S:static, ~:internal, R:rip, O:ospf, B:bgp,
Oi:ospf intra-area, Oo:ospf inter-area, O1:ospf ext-type-1, O2:ospf ext-type-2
destination nexthop metric flags age interface
0.0.0.0/0 172.16.1.1 10 A S 21d ethernet1/2
10.10.0.0/16 10.20.1.1 110 A Oi 14d ethernet1/1
10.30.5.0/24 10.20.1.2 20 A B 5h ethernet1/1
192.168.10.0/24 0.0.0.0 0 A C 21d ethernet1/1
192.168.20.0/24 0.0.0.0 0 A C 21d ethernet1/4.10
test routing fib-lookup virtual-router default ip 10.30.5.42
result: interface ethernet1/1 nexthop 10.20.1.2 source 192.168.10.1 metric 20 (BGP — wins because AD 20 < OSPF AD 30)
test security-policy-match source 192.168.10.50 destination 10.30.5.42 protocol 6 destination-port 443 application ssl
"Allow-Web-Apps" {
from trust-lan;
to untrust-wan;
source [ corp-clients ];
destination [ any ];
application [ ssl web-browsing ];
action allow;
log-end yes;
}
Common mistakes that show up in production
You configured the IP, set the zone, added security rules. Traffic still doesn't flow. Run show interface all — the vr column is empty for that interface. PAN-OS happily accepts the IF without a VR; it just black-holes packets silently. Fix: Network → Virtual Routers → default → Interface → add the missing interface. Commit.
An engineer adds a new interface to "trust" instead of creating a new zone for it. Now the intrazone-default-allow rule lets everything in "trust" reach everything else in "trust" — including the new IF's connected subnet. The audit team finds it six months later. Fix: when in doubt, create a new zone. Zones are free; misplaced trust isn't.
You inserted a PA in vwire between two switches that previously trunked VLANs 100–300. By default vwire passes all tags (0-4094). Then someone "hardened" it by setting the allowed tags to 100, 200 and forgot VLAN 300. The CCTV VLAN goes dark at 3 AM. Fix: set the vwire tag range explicitly to what's actually trunked, including planned future VLANs. Document it.
The lazy "allow any-any temporarily to debug" rule lives forever. PAN-OS docs flag this as the single most common security mistake. Fix: always specify source and destination zones — even during debug, scope to the smallest pair that reproduces the issue.
Pro tips from the field
Both intrazone-default and interzone-default have logging disabled out of the box. Override them (Policies → Security → bottom of the list → Override) and turn on log-at-session-end. Now your SIEM sees every implicit allow and deny — auditors love this and incidents become traceable.
If you anchor BGP peering, GlobalProtect Portal certificate, or syslog source to a physical interface IP, you lose those services when that interface flaps. A loopback interface is always up — anchor protocol-side identifiers to it instead. This is standard practice in every well-run Palo Alto deployment.
New engineers love multi-VR designs ("clean separation!"). Reality — every extra VR adds operational complexity: more next-vr routes, more redistribution rules, more places to debug. Default to single VR. Only add a VR when you have a concrete isolation requirement (guest, MSSP tenant, vsys split). One VR is a feature, not a limitation.
📋 Quick reference — pin this above your desk
| Concept | One-liner |
|---|---|
| L3 IF | Has IP, attaches to VR, attaches to zone — default mode for most deployments. |
| L2 IF | No IP, switches frames, joined to a VLAN object. Use only when you need pure switching. |
| vwire | Bump-in-the-wire, no IP, no re-IP needed at insertion. Pair of interfaces. |
| Tap | Passive monitor from a SPAN port. Inspection only, no enforcement. |
| Sub-IF | VLAN-tagged child of a parent IF. One sub-IF per 802.1q tag. |
| Tunnel | IPSec / GRE virtual interface. Routes via VR like an L3 IF. |
| Aggregate (AE) | LACP bundle of physical IFs — up to 8 members per AE. |
| Loopback | Always-up virtual IF. Use for BGP router-id, GP portal, mgmt source. |
| Zone defaults | intrazone = allow, interzone = deny. Override at least the logging. |
| AD defaults | Static 10, eBGP 20, OSPF 30, RIP 120, OSPF-ext 110, iBGP 200. |
| Asymmetric fix | Same-zone is preferred. Zone-protection bypass second choice. |
| Multi-VR | Only when you NEED isolation. Use next-vr for inter-VR transit. |
📚 Sources cited inline
- Palo Alto Networks Docs — Configure Layer 2 / Layer 3 / Virtual Wire Interfaces. docs.paloaltonetworks.com
- Palo Alto Networks Docs — Security Policy Rule Best Practices. docs.paloaltonetworks.com/best-practices/security-policy-best-practices
- Palo Alto Knowledge Base — How to Influence Routes in OSPF / Route Preference.
- LIVECommunity — DotW: Asymmetric Routing and TCP syn-check Based on Interface or Zone. live.paloaltonetworks.com/ta-p/119501
- Palo Alto Networks — PCNSE Exam Blueprint (Task 1.2 — interface and zone type selection). paloaltonetworks.com/content/dam/pan/en_US/assets/pdf/datasheets/education/pcnse-blueprint.pdf
- Palo Alto Networks Docs — Virtual Wire Subinterfaces / VLAN Tag Handling. docs.paloaltonetworks.com
- LIVECommunity — Intrazone-default rule (community discussion thread 313329).
📝 Check your understanding
10 scenario questions — same depth interviewers and the PCNSE exam will use. Pick one answer per question. You need 70% (7 of 10) to mark this lesson complete on your profile.
What's next?

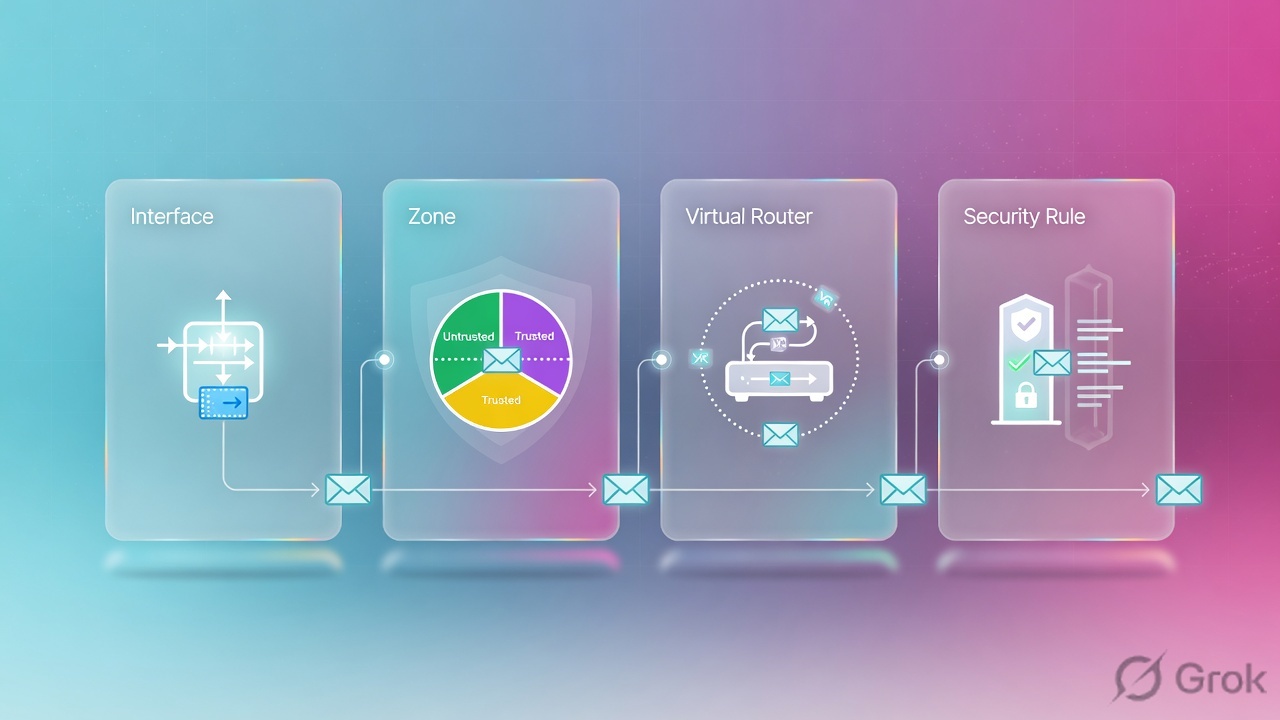

You now know how packets enter, where they sit, and how they leave. Next we build the rule layer on top — Security Policy fundamentals: how PAN-OS matches rules top-down, what intrazone-allow really means in practice, and how the application-default vs service-port distinction trips up engineers every week.
