Palo Alto Advanced URL Filtering: — Categories, Actions, Credential Phishing & Inline ML

① URL categories and the five site-access actions

Picture Sneha, an L2 engineer at Infosys. A security rule already allows web-browsing for the staff zone, so users can browse. One afternoon a phishing email lands, a user clicks, types the company password into a fake portal — and the rule did nothing, because allowing the app is not the same as controlling the websites. The control she was missing is a URL Filtering profile.

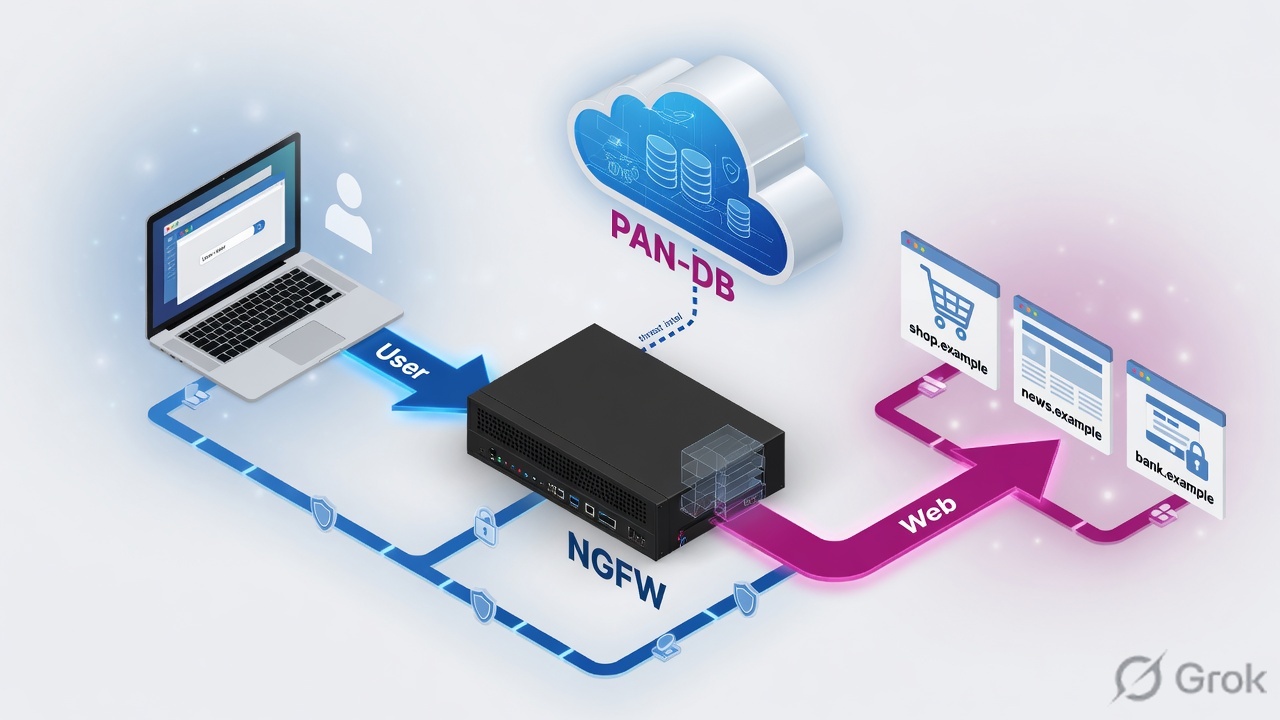

Here's the model. Palo Alto's PAN-DB cloud assigns every website one or more URL categories (social-networking, gambling, malware, phishing, financial-services, and dozens more). The URL Filtering profile is just a table: for each category, you pick a site-access action. There are five of them, and knowing exactly what the user feels for each is core PCNSA/PCNSE material.

Allow — the site loads and no log entry is written. Alert — the site loads, but a log entry is written to the URL Filtering log (this is the workhorse: visible, not blocking). Continue — the user hits a warning response page saying the site is discouraged, and must click Continue to proceed. Override — the user sees a page demanding a password (set by the admin) before the category is unlocked. Block — the site is blocked, the user gets a block page, and a log entry is written.

The five actions, in one tap each

Tap each card — these are the exact behaviours an interviewer (and your block page) will test you on.

② Credential-phishing prevention and real-time inline ML

Blocking known-bad categories is table stakes. The two features that make this "Advanced" URL Filtering — and that show up heavily on the PCNSE — are credential-phishing prevention and real-time inline ML. Both exist because the dangerous site is often one PAN-DB hasn't flagged yet.

Credential-phishing prevention tackles the most common breach entry point: a staffer typing the corporate username and password into a fake login page. In the URL Filtering profile, alongside the Site Access column there is a User Credential Submission column. You can let a user browse a category but set credential submission to block — so they can read a site, but the moment they try to post the corporate password, the firewall stops it. The firewall knows it's the corporate password using User Credential Detection (configured on the User Credential Detection tab — IP-User mapping, Group Mapping, or the Domain Credential Filter).

The second feature: inline ML categorization. PAN-DB is huge but it can't have already-seen a one-time-use phishing URL spun up five minutes ago. Inline ML runs ML models on the firewall (Local Inline Categorization) against the live page content — detecting phishing kits and malicious JavaScript in real time — and can also forward suspicious pages to Cloud Inline Categorization (deep-learning detectors for cloaked, multi-step or CAPTCHA-gated zero-day pages). You enable it on the Inline Categorization tab; the detectors update automatically, no package to download.

③ The URL cache, custom categories, EDLs and precedence

Categorizing every click against the cloud would be slow, so the firewall keeps a URL cache. On a click it checks the local cache first; only on a miss does it ask PAN-DB in the cloud. The database lives on the management plane and resolutions are cached on the data plane — worth knowing because that's exactly where a stale or corrupt entry causes a miscategorization you have to clear.

Sometimes PAN-DB's category isn't what you want. That's where custom URL categories come in. Build one of two types: a URL List (explicit sites — e.g. allow linkedin.com even though you block the social-networking category) or a Category Match (sites that match several PAN-DB categories at once). For lists that change often, point the firewall at an External Dynamic List (EDL) of type URL List — a hosted text file the firewall re-fetches on a schedule, so you update the list without touching config.

Now the rule that trips people up: precedence. PAN-DB evaluates a URL against your custom URL categories first, then EDLs, then the predefined PAN-DB categories. So a custom allow-list entry for linkedin.com beats the broad social-networking block — that's how allow-listing works. And when one URL is matched by multiple rules, the firewall applies the strictest URL Filtering profile action. Get this order wrong and your 'allow this one site' exception silently does nothing.

admin@PA-VM> test url www.linkedin.com

www.linkedin.com social-networking (Base db) expires in 3600 seconds
www.linkedin.com social-networking, low-risk (Cloud db)
admin@PA-VM> test url secure-icici-verify.top
secure-icici-verify.top not-resolved (Base db) expires in 0 seconds
secure-icici-verify.top phishing, high-risk (Cloud db)

④ Why full-path filtering needs decryption — plus safe search, headers, exam & career

Here's the dependency that quietly defeats half of new deployments. The web is HTTPS now. For an encrypted session with no SSL decryption, the firewall sees only the SNI / domain — e.g. drive.example.com — not the full path. So it can categorize at the domain level only: it cannot block a single folder, cannot inject a continue or override warning page into the encrypted stream, and cannot read page content for inline ML or credential detection. Full-path URL Filtering needs SSL decryption.

Two more profile features worth knowing. Safe Search Enforcement (on the URL Filtering Settings tab) forces strict SafeSearch on Google/Bing/YouTube so users can't turn off explicit-content filtering. And HTTP Header Insertion (its own tab) lets the firewall inject headers — for example restricting Google Workspace or Office 365 to only your corporate tenant — plus HTTP Header Logging for visibility. Both, again, work properly on HTTPS only when traffic is decrypted.

One sober note from 2025. URL Filtering lives on the data plane, but it's configured and monitored from the management web interface — which has been a target. Palo Alto disclosed several 2025 management-interface flaws: CVE-2025-0108 (authentication bypass), CVE-2025-0110 (OpenConfig command injection) and CVE-2025-4231 (authenticated admin command injection). The lesson for a URL-filtering admin: keep the management interface off the public internet and restricted to trusted IPs, and patch PAN-OS — a compromised firewall makes your carefully tuned URL policy meaningless.

For your certification path, this is heartland PCNSA and PCNSE content. The exam loves the five actions (especially the difference between continue and override), credential-phishing prevention, the order custom-category → EDL → PAN-DB, and the single most-missed idea: that HTTPS full-path filtering, inline ML and credential detection all depend on SSL decryption. Nail those and you've covered a solid slice of the Security Profiles domain — and you'll sound like someone who has actually run a firewall, not just read about one.

admin@PA-VM> show url-cloud status
admin@PA-VM> request url-filtering update url www.example.in

URL cloud status:
   Cloud connection:    connected
   URL database version: 20260611.20240
   Cloud server:        serverlist.urlcloud.paloaltonetworks.com
   Status:              up

www.example.in updated. Category now: computer-and-internet-info, low-risk
