F5 BIG-IP DNS / GTM Deep Dive - Wide IPs, Pools, Monitors & GSLB Failover

GTM is the legacy name many engineers still use; F5 renamed it BIG-IP DNS from BIG-IP 12.0. A strong answer explains DNS decision flow: listener, wide IP, pool, data center, server, virtual server, monitor, topology and sync health.

📅 2026-06-22 · ⏱ 18 min · 5 infographics · scenario lab · 🏷 10-Q assessment + AI Tutor inline

⚡ Quick Answer

Deep F5 BIG-IP DNS/GTM guide: wide IPs, pools, data centers, servers, virtual servers, monitors, topology, sync groups and GSLB troubleshooting.

🎯 By the end you will be able to

Read as:

Pick where you want to start

1

Why it matters

GSLB outages are often misunderstood because DNS answers can be cached and because the appli

 2

Objects to name

Wide IP, GSLB pool, Server, Virtual server

 3

Scenario path

A Mumbai data center fails, but some users still resolve the application to the Mumbai virtu

 4

Fix and verify

Tune monitor and TTL strategy, validate authoritative answers, update topology or pool order

🧠 Warm-up — 3 questions, no score

Just notice which ones make you pause. We answer all three inside the lesson.

1. What is the weak interview trap for F5 BIG-IP DNS and GTM GSLB?

Answered in Why this matters.

2. For F5 BIG-IP DNS and GTM GSLB, which evidence should you collect before changing production?

Answered in Objects to name.

3. What should F5 BIG-IP DNS and GTM GSLB remediation avoid?

Answered in Fix and verify.

Weak answer vs real interview answer

A weak answer says only: 'F5 BIG-IP DNS and GTM GSLB is important for F5.' That is not enough for a learner, interview panel or production bridge call.

A strong answer connects product objects, evidence and risk: F5 describes BIG-IP DNS as a hyperscale and secure DNS solution with superior DNS performance, DNS security, reporting, global server load balancing, automated failover and DNS health monitors. Then it proves the decision with wide IP status, pool order and method, pool member virtual server status, data center and server health, monitor result, topology records, DNS listener, iQuery/big3d state, sync group health, TTL and resolver cache behavior.

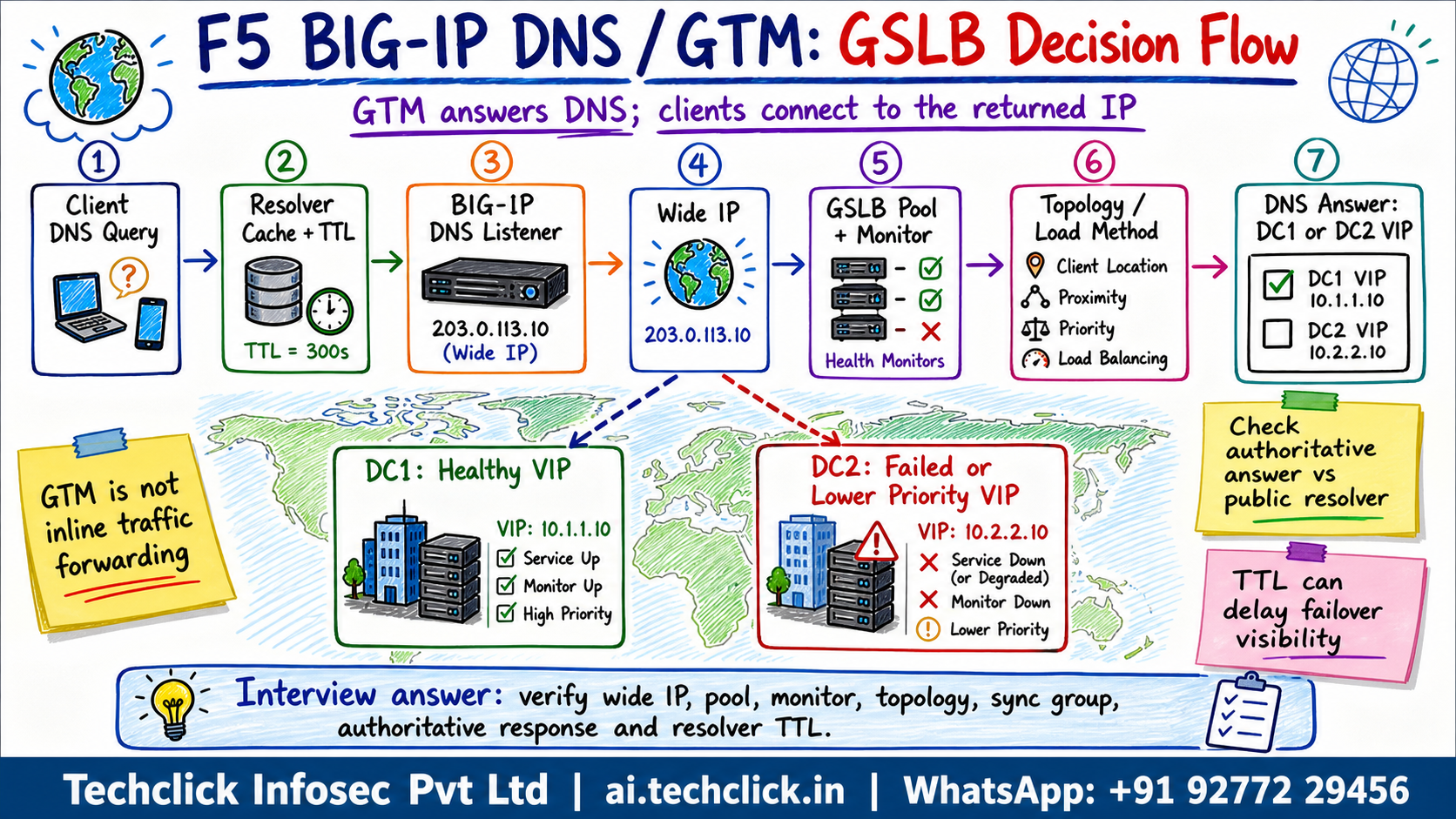

ChatGPT Image Infographic - F5 BIG-IP DNS / GTM GSLB decision flow
Hand-drawn infographic explaining F5 BIG-IP DNS and GTM GSLB query flow through resolver TTL, DNS listener, wide IP, GSLB pool, monitor, topology and DNS answer.
AI-generated classroom infographic for GSLB. It highlights that GTM answers DNS while TTL and resolver cache can delay failover visibility.

① Why F5 BIG-IP DNS and GTM GSLB matters in production

GSLB outages are often misunderstood because DNS answers can be cached and because the application may be healthy locally while global monitor or topology logic is wrong.

F5-specific angle: F5 describes BIG-IP DNS as a hyperscale and secure DNS solution with superior DNS performance, DNS security, reporting, global server load balancing, automated failover and DNS health monitors.

Do not say: Assume GTM sends traffic like LTM; it only answers DNS queries and clients then connect to the returned IP. That answer skips the evidence path that makes the decision defensible.

Figure 1 — F5 BIG-IP DNS and GTM GSLB evidence path
A high-quality answer follows evidence, not slogans.F5 BIG-IP DNS and GTM GSLB evidence pathQueryclient resolver asksWide IPmatches FQDNPool pickmethod/topologyMonitorhealthy virtualsDNS answerIP + TTL
A high-quality answer follows evidence, not slogans.
Quick check · Q1 of 10 · Understand

For F5 BIG-IP DNS and GTM GSLB, what makes an answer production-ready?

Correct: b. Production answers must connect the object model, evidence, root cause and verification path.
👉 So far: F5 BIG-IP DNS and GTM GSLB needs an evidence path, not a brand explanation.

② Product objects and evidence you must name

Name the F5 objects first, then name the evidence. That is what separates a real engineer answer from brochure language.

Evidence to ask for: wide IP status, pool order and method, pool member virtual server status, data center and server health, monitor result, topology records, DNS listener, iQuery/big3d state, sync group health, TTL and resolver cache behavior.

Figure 2 — F5 BIG-IP DNS and GTM GSLB concepts to name
Use these objects when explaining design or troubleshooting.F5 BIG-IP DNS and GTM GSLB concepts to nameWide IPThe DNS name object that owns the GSLB answer logic.GSLB poolA group of global resources selected for a wide IP.ServerA data-center device or host known to BIG-IP DNS.Virtual serverThe application endpoint returned as a DNS answer.Sync groupBIG-IP DNS devices sharing GSLB configuration and state.
Use these objects when explaining design or troubleshooting.
Figure 3 — Evidence hub
Tie control-plane objects, data-plane behavior and logs together.Evidence hubEvidenceprove before changeWide IPGSLB poolServerVirtual serverSync group
Tie control-plane objects, data-plane behavior and logs together.
1
Wide IP
tap to flip

The DNS name object that owns the GSLB answer logic.

2
GSLB pool
tap to flip

A group of global resources selected for a wide IP.

3
Server
tap to flip

A data-center device or host known to BIG-IP DNS.

4
Virtual server
tap to flip

The application endpoint returned as a DNS answer.

Name the F5 object before the symptom

For F5 BIG-IP DNS and GTM GSLB, start with the object that makes the decision. Then move to logs, counters and packet/session evidence.

Quick check · Q2 of 10 · Remember

Which evidence set is strongest for F5 BIG-IP DNS and GTM GSLB?

Correct: c. The correct evidence set lets you prove where the decision was made and where it failed.
👉 So far: Core objects: Wide IP, GSLB pool, Server, Virtual server. Evidence: wide IP status, pool order and method, pool member virtual server status, data center and server health, monitor result, topology records, DNS listener, iQuery/big3d state, sync group health, TTL and resolver cache behavior.

③ Scenario path - where the issue actually breaks

Healthy path: Query -> Wide IP -> Pool pick -> Monitor -> DNS answer. In a live issue, walk the flow from left to right and stop where evidence disappears.

Scenario: A Mumbai data center fails, but some users still resolve the application to the Mumbai virtual server for several minutes.

Likely root cause: The wide IP failed over correctly for new authoritative queries, but recursive resolvers still cache the old answer until TTL expires.

Diagnosis: Compare authoritative BIG-IP DNS answer with public resolver answers, check TTL, monitor state, pool selection and topology rule match.

Figure 4 — Weak vs strong production answer
The strong answer gives a bridge-call path and an interview answer.Weak vs strong production answerWeak GTM answerGTM forwards packetsDelete the bad IPIgnore recursive cacheCheck only local app healthStrong DNS answerAuthoritative answer firstCheck wide IP and pool methodValidate monitors and topologyAccount for TTL and cache
The strong answer gives a bridge-call path and an interview answer.

Neha at a Mumbai fintech faces this

A Mumbai data center fails, but some users still resolve the application to the Mumbai virtual server for several minutes.

Likely cause

The wide IP failed over correctly for new authoritative queries, but recursive resolvers still cache the old answer until TTL expires.

Diagnosis

Compare authoritative BIG-IP DNS answer with public resolver answers, check TTL, monitor state, pool selection and topology rule match.

DNS > GSLB > Wide IPs + DNS > GSLB > Pools + tmsh show gtm wideip/pool/server + dig @
Fix

Tune monitor and TTL strategy, validate authoritative answers, update topology or pool order if wrong, and communicate resolver-cache delay during failover testing.

Verify

Repeat the original user path, check the relevant F5 logs/counters, and confirm the owner sees the expected application result.

Do not confuse green status with working service

A green object can still fail for real users if the wrong profile, route, policy branch, DNS answer, SSL behavior or cache state is in play.

Watch one GSLB DNS decision

Press Play to follow a wide IP answer, then Break it to see a TTL-cache failover trap.

① DNS queryResolver asks BIG-IP DNS for app.example.com.
▼
② Wide IPThe FQDN matches a wide IP.
▼
③ Pool logicMethod, topology and monitor state choose a virtual server.
▼
④ AnswerBIG-IP DNS returns an IP address with TTL.
Press Play to step through the healthy path. Then press Break it.
Quick check · Q3 of 10 · Apply

A Mumbai data center fails, but some users still resolve the application to the Mumbai virtual server for several minutes.

Correct: a. The scenario must be diagnosed from the F5 flow and supporting logs, not from a guess.
👉 So far: Scenario root cause: The wide IP failed over correctly for new authoritative queries, but recursive resolvers still cache the old answer until TTL expires.

④ Interview answer, remediation and verification

Model answer: I explain that BIG-IP DNS/GTM decides DNS answers, not live TCP forwarding. During failover I prove the authoritative answer first, then check monitor state, pool method, topology and resolver cache TTL.

Fix path: Tune monitor and TTL strategy, validate authoritative answers, update topology or pool order if wrong, and communicate resolver-cache delay during failover testing.

Unsafe shortcut to avoid: Delete the pool member during an incident without checking TTL, monitor status, topology and sync-group consistency.

Figure 5 — Fix and verify loop
Do the smallest safe change, then prove the original condition changed.Fix and verify loopScopesmallest objectChangelow blast radiusTestone known flowObservelogs and countersCloseowner confirms
Do the smallest safe change, then prove the original condition changed.
Close with evidence

A good Techclick answer ends with the exact proof: log entry, counter, packet capture, session variable, DNS answer, support ID or user transaction.

Quick check · Q4 of 10 · Evaluate

What is the safest remediation mindset for F5 BIG-IP DNS and GTM GSLB?

Correct: d. Scoped, evidence-backed changes reduce blast radius and make the fix defensible.
👉 So far: Safer fix: Tune monitor and TTL strategy, validate authoritative answers, update topology or pool order if wrong, and communicate resolver-cache delay during failover testing.

🤖 Ask the AI Tutor

Tap any question — instant, scoped to this lesson. No login, no waiting.

Pre-curated from vendor docs + community Q&A, scoped to this lesson. For a live prod issue, paste your export into chat.techclick.in.

📝 Wrap-up assessment — six more

You've answered 4 inline. Six left. 70% (7 of 10) marks the lesson complete on your profile. Tap Submit all answers at the end.

Q5 · Remember

In F5 BIG-IP DNS and GTM GSLB, what should you identify before changing settings?

Correct: b. The exact object determines the right evidence path and the safest change scope.
Q6 · Understand

Why is this shortcut dangerous: Delete the pool member during an incident without checking TTL, monitor status, topology and sync-group consistency.?

Correct: a. Unsafe shortcuts usually hide the real failure and increase blast radius.
Q7 · Apply

Which action best validates the fix for F5 BIG-IP DNS and GTM GSLB?

Correct: c. A fix is not complete until the original condition is reproduced as healthy and supported by logs/counters/evidence.
Q8 · Analyze

What makes F5 BIG-IP DNS and GTM GSLB different from a generic product summary?

Correct: b. The Techclick value is the scenario-led evidence path, not product brochure language.
Q9 · Evaluate

During a live incident on F5 BIG-IP DNS and GTM GSLB, what should be avoided first?

Correct: d. Broad bypass can create security or availability risk and makes the incident harder to learn from.
Q10 · Evaluate

Which final answer would satisfy an L2/L3 interview panel for F5 BIG-IP DNS and GTM GSLB?

Correct: c. This answer shows ownership, method and production judgment.
Lesson complete — saved to your profile.
Almost! You need 70% (7 of 10) — re-read the path that tripped you up and tap "Try again".

🧠 In your own words

Type one line: what makes F5 BIG-IP DNS and GTM GSLB different from a generic F5 answer? Then compare with the expert version.

Expert version: F5 BIG-IP DNS and GTM GSLB is not a list of features. It is a decision flow with named F5 objects, evidence, a failure point, a scoped fix and a verification step.

🗣 Teach a friend

Best way to lock it in — explain it in one line to a teammate. Tap to generate a paste-ready summary.

📖 Glossary

Wide IP
The GSLB DNS object matching an FQDN and choosing a pool.
GSLB pool
A set of global resources used to answer a wide IP.
Data center
A logical site grouping servers and virtual servers.
Server
A BIG-IP DNS object representing a BIG-IP device or host.
Virtual server
The IP:port application target that can be returned in DNS.
Topology
A rule set that steers answers based on source and destination geography or network.
iQuery
The communication path used between BIG-IP DNS and other BIG-IP systems.
Sync group
A group of BIG-IP DNS systems that synchronize GSLB configuration and status.

📚 Sources

  1. F5 - BIG-IP DNS product page. https://www.f5.com/products/big-ip-services/big-ip-dns
  2. F5 MyF5 - K17329: BIG-IP GTM name has changed to BIG-IP DNS. https://my.f5.com/manage/s/article/K17329
  3. F5 MyF5 - K55502976: BIG-IP DNS/DNS services. https://my.f5.com/manage/s/article/K55502976
  4. F5 TechDocs - BIG-IP DNS Implementations. https://techdocs.f5.com/en-us/bigip-16-0-0/big-ip-dns-implementations.html
  5. F5 CloudDocs - BIG-IP DNS (GTM) and GSLB. https://clouddocs.f5.com/products/extensions/f5-appsvcs-extension/3.32/declarations/gslb.html
  6. F5 TechDocs - Determine DNS Sync Group Health. https://techdocs.f5.com/en-us/bigiq-7-1-0/managing-dns-using-big-iq/determine-dns-sync-group-health.html
