Snort 3 IPS on FTD — attach, set HOME_NET, prove the drop

The ticket says “Balanced is on the firewall” and still nothing drops — or the SOC is drowning in alerts and nobody can name a single GID:SID. Snort 3 is not a chassis switch. It is an intrusion policy plus a variable set, hung on an Allow access-control rule. This lesson builds that stack, then you prove Alert vs Drop in intrusion events.

~18 min read · L2 primary · Quiz at end

After this page you can

Quick answer (say this out loud)

Snort 3 inspects only traffic that an Allow (or Interactive Block, or an IPS default action) hands it. Pair the intrusion policy with a variable set so $HOME_NET is your protected space and $EXTERNAL_NET is where threats live. Alert writes an intrusion event and forwards the packet. Block / Drop writes the event and drops — but only if the device is inline and the policy is in Prevention. Proof is not a connection Allow. Proof is Analysis → Intrusions → Events: Message, Inline Result, Intrusion Policy.

1. Why “IPS is on” still fails

Monday you create IPS-CAMPUS-BALANCED from Balanced Security and Connectivity. Tuesday the Allow rule that should use it is still sitting under a Trust any-any, or the Inspection tab still says Default-Set with $HOME_NET = any. HTTPS still works. Intrusion events stay empty — or they flood, every one of them Alert with a blank Inline Result.

Cisco is blunt: Allow rules in the Access Control Policy are the primary way to enable Snort deep inspection. You specify the intrusion policy on the Inspection tab of an Allow rule. Trust and Block never get that tab. Encrypted payloads skip intrusion and file inspection unless you decrypt first.

Hero · Allow, then Snort, then the event

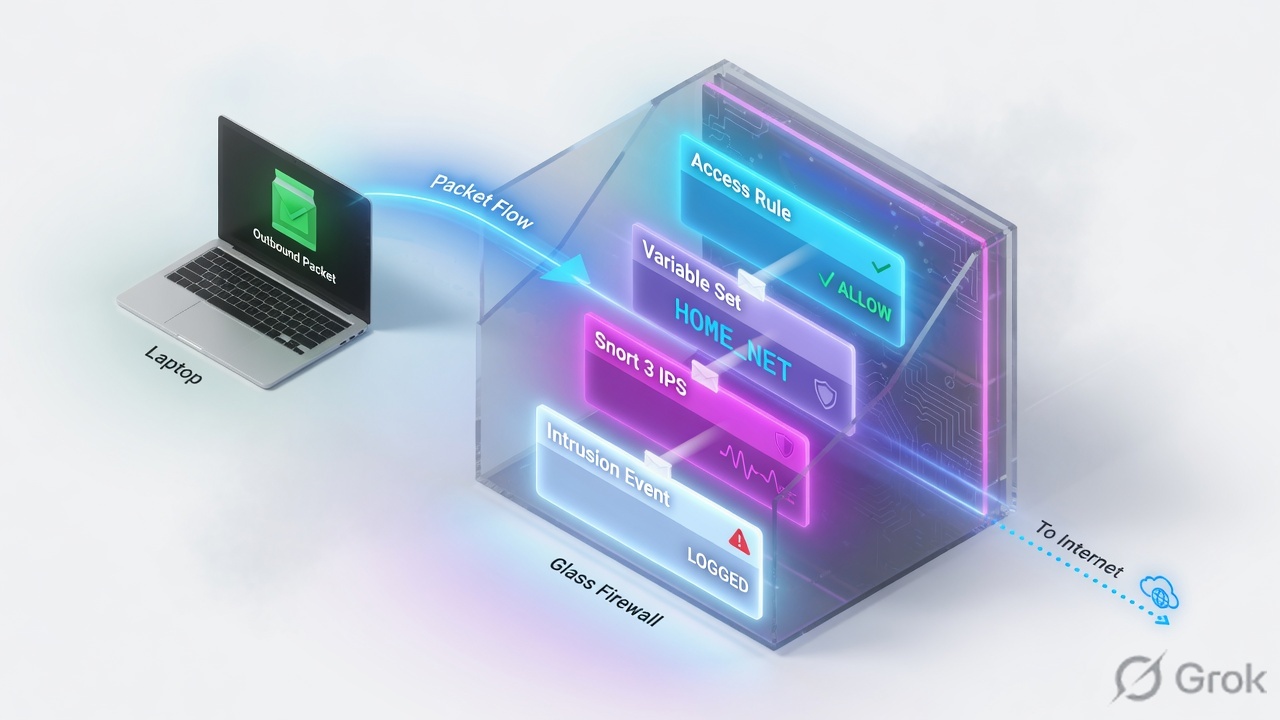

Packet flowing through Allow, HOME_NET, Snort 3, and an intrusion event card
Notice the order. Snort never votes if Access Control already Trusted or Blocked the flow.

Intrusion policy

Which Talos (or custom) rule set is enabled, and whether each rule is Alert, Block/Drop, or disabled. Needs the IPS / Threat license.

Variable set

Named values the rules use — especially $HOME_NET and $EXTERNAL_NET. Attached per Allow rule, not “somewhere on the chassis.”

2. Mental model: Allow, variables, then Snort

Memorize four objects. Mixing them is why people tune Snort for a flow Snort never received.

Access Control decides who is even eligible. Network Analysis Policy (NAP) decodes and normalizes (Snort 3 inspectors; Snort 2 preprocessors) so pattern matching is possible. Variable set tells each rule header who is home and who is external. Intrusion policy is the enabled rule list and the action on a match.

NAP runs after Security Intelligence and after optional TLS decryption, and before file and intrusion inspection. Cisco wants the NAP base policy to match the intrusion base policy — Balanced with Balanced, Security Over Connectivity with Security Over Connectivity.

Journey · five stations to an event

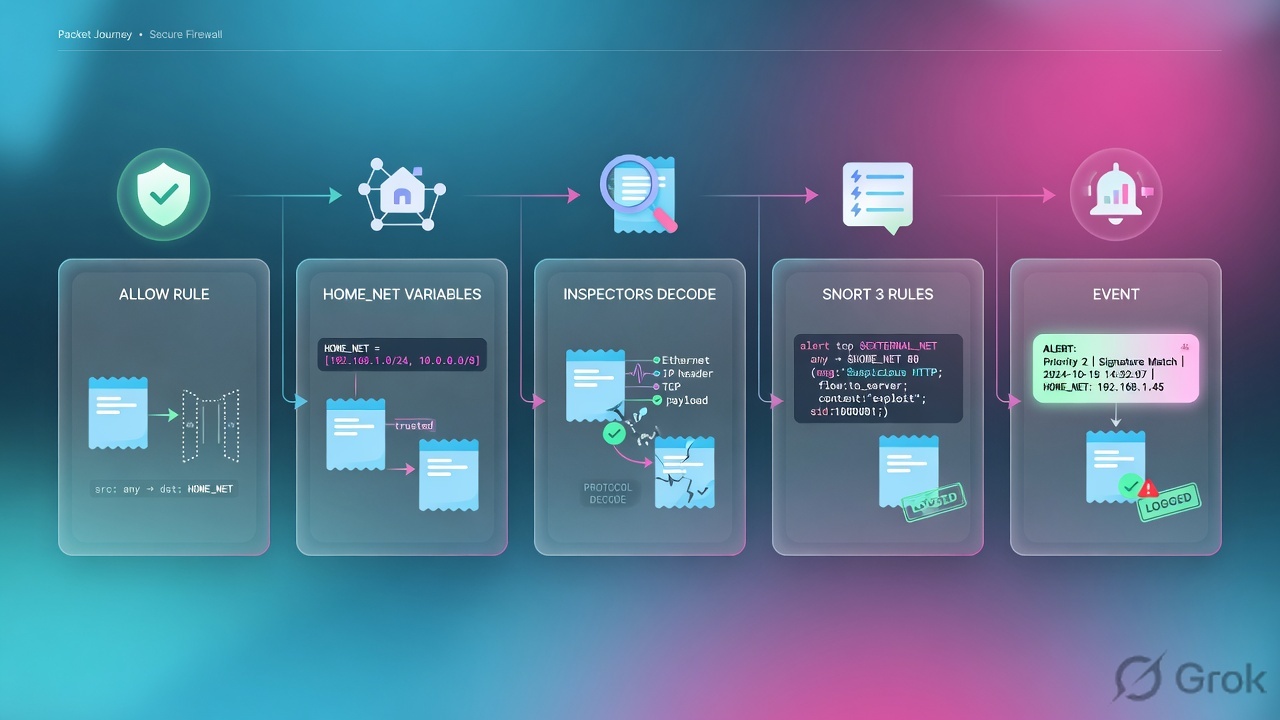

Five glass panels: Allow, HOME_NET, inspectors, Snort 3 rules, event
File policy (if attached) runs before IPS on an Allow. Encrypted payloads skip both unless decrypted.
Flow 1 · who hands traffic to Snort 3
Packet path — IPS is not station 1 1 · ACP Allow Inspection tab not Trust / Block 2 · Variable set $HOME_NET $EXTERNAL_NET 3 · NAP inspectors decode same base as IPS 4 · Snort 3 enabled rules Alert or Block 5 · Event GID:SID:rev Inline Result If the ACP action is Trust or Block Stations 2–5 never run. Tune the access-control handler first — this is the previous lesson. Hard words before the runbook GID = which engine wrote the event (1 = text rule, 3 = shared object). SID = Snort ID. LSP = Snort 3 rule package (SRU is Snort 2). Inline Result = dropped, would have dropped, or blank. Blank usually means the rule was Alert, not Drop and Generate / Block. Inspection mode Prevention applies drop actions. Detection treats drop rules like alerts (Would have dropped / Would Have Blocked).

Read left → right, then the green bar. If Q1 on the quiz feels wrong, this is the figure to re-read.

Say this out loud

The intrusion policy is the rule list. The variable set is who those rules think they are protecting. Alert is a camera. Block is a door. A camera on a Trust rule is still a Trust rule.

3. Decision: Alert, Drop, or Would have dropped

A rule fires when the packet matches every condition in the header and body, after variables are substituted. What happens next is not “IPS = drop.” It is the rule action plus the inspection mode plus whether the interface can actually drop.

Decision · Alert versus Drop

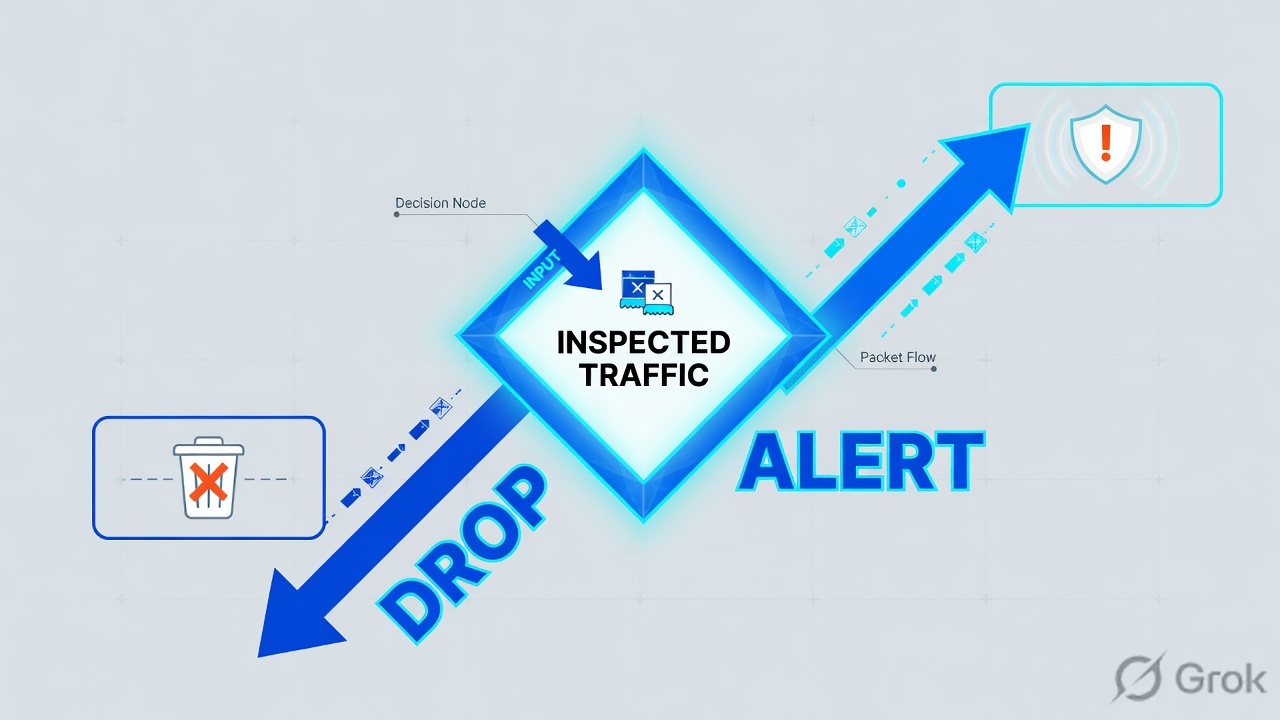

Diamond splitting inspected traffic into Alert and Drop paths
Alert always forwards. Drop / Block only kills the packet when the device is inline and the policy is Prevention.
Flow 2 · rule action meets inline result
Match → action → can this device drop? Rule matches header + body + vars Action Alert? Yes → event only Inline Result blank No → Block / Drop event + try to drop Inline + Prevent? Dropped packet dies Would have dropped Detection / tap / passive Snort 3 rule actions Alert was Generate Events Block was Drop and Generate 7.1+ also: Drop, Rewrite, Pass, Reject. Disabled = rule is not in the policy. FDM wording Alert · Drop · Disabled Prevention applies Drop. Detection = Would Have Blocked. Same idea.

If the SOC wanted a drop and Inline Result is blank, the rule is still Alert. If it says Would have dropped, the action is drop-capable but the box cannot (or will not) drop.

NAP Detection mode is going away

From Management Center 7.4, NAP Detection inspection mode is deprecated. Inspector drops are now controlled by the rule state. Cisco recommends Prevention for the NAP. Do not flip Normalizer / inline normalization off without TAC — Snort 3 relies on it.

4. Base policy and variable-set choices

Create a custom intrusion policy on a Talos base. Do not edit the system-provided policy in place — an LSP (Snort 3 rule package) can rewrite Talos defaults. Match the NAP base to the same name.

Talos basePostureWhen to use it
Connectivity Over SecurityFewest enabled rules (Cisco cites ~600). Only the most critical drop rules.Pilot, brittle apps, or a dedicated “do not break this” Allow.
Balanced Security and ConnectivityDefault. Cisco cites ~15,000 enabled rules. Speed and detection.Campus and most production Allows. Start here.
Security Over ConnectivityMore anomaly rules. Cisco cites ~19,000. More false positives and latency.High-risk segments after you have a tuning process.
Maximum DetectionCisco: lab / high-security monitors only. ~37,000+ rules. Throughput not guaranteed.Not a production default.
No Rules ActiveTypical inspectors, no rules on.You will enable only the groups you name.
VariableDefaultWhat you should do
$HOME_NETanyYour protected hosts. Common: object IPv4-Private-All-RFC1918, plus any public DMZ space that device actually protects.
$EXTERNAL_NETanyLeave any if you need east-west detections (internal → internal). Exclude $HOME_NET on a pure edge box, or if false positives are unmanageable. Talos lateral rules often already use any in the header.
$HTTP_SERVERS / $HTTP_PORTSTied to $HOME_NET / a long port listTighten only when you know the real web farm. Wrong ports = missed HTTP rules.
Leaving both at any is legal — and noisy

Cisco: the default of any on both variables ensures complete inspection but is less efficient and produces extra false positives. A variable set can differ per Allow rule even if the intrusion policy is the same. Most shops still use one set per device to stay sane.

5. Runbook: variables, policy, attach

Primary source for this block: Cisco Secure Firewall Intrusion Policy guidance and the FMC Device Configuration Guide chapter Intrusion Prevention Overview (7.6).

Side A — Variable set (outside the rule editor)

  1. Open Variable Sets

    Objects → Object Management → Variable Set. Edit Default-Set or clone a set named for the ticket (VS-CAMPUS). Default-Set is what every Allow uses until you pick something else.

  2. Set $HOME_NET

    Include the networks this FTD protects. Lab example: 10.0.1.0/24 (users) and 10.0.2.0/24 (servers), or the system object IPv4-Private-All-RFC1918. Including extra RFC1918 space does not hurt detection; missing a range does.

  3. Decide $EXTERNAL_NET

    Edge-only visibility → exclude $HOME_NET. Need internal attacker → leave any. Save the set before you attach it.

https://fmc.lab.example/#objects/variable-set/VS-CAMPUS
Training mock · not live

Objects → Object Management → Variable Set → VS-CAMPUS

Edit Variable Set

Variables Overrides
VS-CAMPUS
IPv4-Private-All-RFC1918
any
$HOME_NET (inherited)
system default list
Cancel Save

Placeholder only. Source: Cisco Secure Firewall Intrusion Policy — Variable Sets.

After Save, the set still does nothing until an Allow rule’s Inspection tab points at it. Next step is the intrusion policy, then the attach.

Side B — Intrusion policy and the Allow attach

  1. Create a custom intrusion policy

    Policies → Access Control heading → Intrusion (or Policies → Intrusion) → Create Policy. Name it for the ticket (IPS-CAMPUS-BALANCED). Base = Balanced Security and Connectivity. Inspection mode = Prevention if this FTD is routed, switched, transparent, or inline and you intend to drop. Detection only if you must watch first.

  2. Open the Snort 3 Version

    Do not start on the Snort 2 editor unless the device still runs Snort 2. Override a noisy rule to Alert (or disable it) instead of switching the whole base down. Changing a rule group’s security level (1–4) is safer than a pile of permanent individual overrides — LSP updates still apply inside the level.

  3. Match the NAP

    Policies → Intrusion → Network Analysis Policies tab → Create Policy with the same Talos base. Then Policies → Access Control → edit the ACP → Advanced → Network Analysis and Intrusion Policies. Set Default Network Analysis Policy to that NAP. If any Allow uses application or URL conditions, also set Intrusion Policy used before Access Control rule is determined — Snort 3 needs this more than Snort 2 did, or early packets pass uninspected while AppID runs.

  4. Attach on the Allow

    Edit the Allow (example INSIDE-to-OUTSIDE-HTTPS-IPS). Inspection tab: Intrusion Policy = IPS-CAMPUS-BALANCED, Variable Set = VS-CAMPUS. You cannot hang IPS on Trust or Block. An IPS default action is allowed, but a file policy is not available on the default action.

https://fmc.lab.example/#policies/access-control/edit/rule/inspection
Training mock · not live

Policies → Access Control heading → Access Control → ACP-CAMPUS → INSIDE-to-OUTSIDE-HTTPS-IPS

Edit Rule · Inspection

General Zones Networks Inspection Logging
Allow
None (optional)
IPS-CAMPUS-BALANCED
VS-CAMPUS
Cancel Save

Source: Cisco Secure Firewall — Access Control rules attach IPS on Allow; variable set is selected on the same Inspection tab.

Confirm the rule is still above any Trust that could also match this HTTPS flow. Then Save and Deploy. A saved IPS that never deployed is a comment.

Side C — Deploy and generate one hit

  1. Save and deploy

    Deploy to the targeted FTD. Confirm the device is on Snort 3 (device settings / Snort version). Established connections keep the old inspection until they close.

  2. Confirm rule updates

    System → Updates → Rule Updates shows both SRU (Snort 2) and LSP (Snort 3). Download and deploy the LSP if the policy is marked out of date after a Talos drop.

  3. Pilot one flow you expect to fire

    Use a lab SID you own, or a known-safe test the shop already approved. Then prove it in intrusion events — next section — before you call the change done. Connection Allow alone is not IPS proof.

6. Prove it: intrusion events

Primary source: Cisco Secure Firewall Management Center Administration Guide — Intrusion Events (7.4).

Path: Analysis → Intrusions → Events. An intrusion event is generated when a packet matches an enabled Alert or Drop/Block rule (or an enabled preprocessor/inspector rule). Managed devices send those events to FMC. Connection logging being on does not create this row; a Snort match does.

Ops · verification desk
Operations desk with a monitor showing abstract health checks after an IPS drop
Green boxes are not the proof. Message, Inline Result, and Intrusion Policy are the proof.
https://fmc.lab.example/#analysis/intrusions/events
Training mock · not live

Analysis → Intrusions → Events · last 15 minutes · device FTD-EDGE-01

Intrusion Events

Message Inline Result Intrusion Policy AC Rule
SQL injection attempt (1:1234:2) Dropped IPS-CAMPUS-BALANCED INSIDE-to-OUTSIDE-HTTPS-IPS
Suspicious user-agent (1:5678:1) — IPS-CAMPUS-BALANCED INSIDE-to-OUTSIDE-HTTPS-IPS
Malformed HTTP (119:2:1) Would have dropped IPS-CAMPUS-BALANCED INSIDE-to-OUTSIDE-HTTPS-IPS

Lab SIDs are placeholders. Columns map to Message (GID:SID:rev), InlineResult, IntrusionPolicy, AccessControlRuleName.

Row 1 is a pass for a prevention deploy. Row 2 is a camera, not a door. Row 3 means the action wanted a drop and the box could not (Detection, tap, or passive).

Read these fields on every pilot:

What “done” looks like in the event
Message            : SQL injection attempt (1:1234:2)
Inline Result      : dropped
Intrusion Policy   : IPS-CAMPUS-BALANCED
Access Control Rule: INSIDE-to-OUTSIDE-HTTPS-IPS
Source IP          : 198.51.100.66
Destination IP     : 10.0.2.20
Ingress Zone       : OUTSIDE
Egress Zone        : DMZ
If there is no intrusion row, stop arguing with Talos

Confirm the connection event Action is Allow (or IPS default), the Inspection tab names this policy, the payload is not still encrypted, and the SID is not Disabled. Then check $HOME_NET. Do not raise the base to Maximum Detection to fix a Trust rule.

7. Traps and pilot checklist

SymptomLikely causeWhat you prove
Zero intrusion events; HTTPS still works Trust or Block handled the flow, or no IPS on the Allow, or not deployed Connection event Action and Access Control Rule. Inspection tab. Deploy status.
Events exist, Inline Result blank, traffic not dropped Rule action is Alert (Generate Events) Snort 3 Version → that SID → Block / Drop. Redeploy. Re-read the event.
Inline Result = Would have dropped Inspection mode Detection, or interface is passive / inline-tap Intrusion (and NAP) mode. Interface mode lesson. Cisco: tap/passive cannot drop regardless of rule state.
Flood of junk SIDs on internal-to-internal $HOME_NET and $EXTERNAL_NET still any Variable set on that Allow. Set HOME_NET; consider excluding it from EXTERNAL_NET.
No events on HTTPS you decrypted in your head Encrypted payload — Cisco disables IPS/file on encrypted payloads by default Decryption policy match / SSL Status on the connection. Decrypt first.
App/URL Allow has IPS, first packets still dirty AppID needs data packets; those packets never hit the later IPS rule ACP Advanced → Intrusion Policy used before Access Control rule is determined.
Policy “out of date” after Tuesday’s Talos drop LSP applied in FMC, not deployed to the device System → Updates → Rule Updates (LSP vs SRU). Deploy the parent ACP.
Pilot checklist

Knowledge check

Six judgment questions. Use the path figure, the Alert vs Drop figure, and the intrusion-event fields. Check answers when you are done.

Q1

A Trust any-any sits above INSIDE-to-OUTSIDE-HTTPS-IPS (Allow + Balanced + VS-CAMPUS). A user on INSIDE opens HTTPS. What happens to Snort 3?

Correct: d. Allow rules are how you enable Snort inspection. Trust does not attach an intrusion policy. Re-read the path and why IPS is on still fails.
Q2

You left $HOME_NET and $EXTERNAL_NET at the system default. What is that default, and what is the usual operational cost?

Correct: b. Cisco documents both defaults as any. That is valid and noisy. Re-read variable-set choices.
Q3

A SID fires. The packet is forwarded. Inline Result is blank. The intrusion policy is Prevention on an inline FTD. What does that tell you about the rule action?

Correct: a. Cisco: no icon (blank) means the triggered rule was not set to Drop and Generate Events. Passive/tap produces Would have dropped, not blank. Re-read Alert vs Drop and Inline Result.
Q4

The same SID now shows Inline Result = Would have dropped. Traffic still reaches the server. What is the first configuration to inspect?

Correct: c. Would have dropped is Detection mode, or passive/tap, or drop-when-inline not applying. Base policy does not by itself turn a drop into “would have.” Re-read the decision figure.
Q5

You need DMZ public space in $HOME_NET only for the WAN-to-DMZ Allow, not for inside-to-internet. Where is that configured?

Correct: b. Cisco: a variable set can be configured on each Access Control Allow rule, so HOME_NET can differ even when the intrusion policy is the same. Re-read Side A and Side B.
Q6

Pilot exploit is supposed to be blocked. Connection events show Allow on your IPS rule. What is the proof you still owe?

Correct: d. Connection Allow only proves ACP. IPS proof is the intrusion event fields. Re-read prove it and the pilot checklist.
