ClearPass captive cert: the padlock guests actually trust

Guest Wi-Fi opens a page. Chrome says “Your connection is not private.” Access Tracker already shows Accept. The missing object is not another service rule — it is the HTTPS Server Certificate on ClearPass, signed by a CA that a stranger’s phone already trusts.

Updated 2026-08-19·20 min read·L2 primary·Quiz at end

After this page you can

The ticket

Guest SSID is up. Phones get DHCP. The redirect hits https://guest.techclick-lab.in/guest/iaccept.php. Half the visitors click through a red warning; iPhones never pop the portal. The NAC engineer says “policy is fine.” The wireless engineer says “use the default securelogin.hpe.com cert.” Neither statement gets a visitor online without a warning.

HPE documents the blunt version: if ClearPass does not have an HTTPS certificate from a well-known CA, Guest over HTTPS will throw cert warnings. The work is not “make a cert somewhere.” It is “make the cert the guest browser will validate for the exact URL in the redirect.”

Quick interview answer

On ClearPass the captive-portal certificate is the HTTPS Server Certificate. It is used for Guest HTTPS and also for the admin GUI. Create a CSR under that usage, put the public guest FQDN in Common Name and SAN, sign it with a public CA, import the leaf plus intermediates into Certificate Store, and put the issuing CAs on the Trust List (Usage: Others). A second certificate lives on the controller as Captive Portal Certificate — that name is intercepted and should not be in public DNS. Do not expose ClearPass to the Internet.

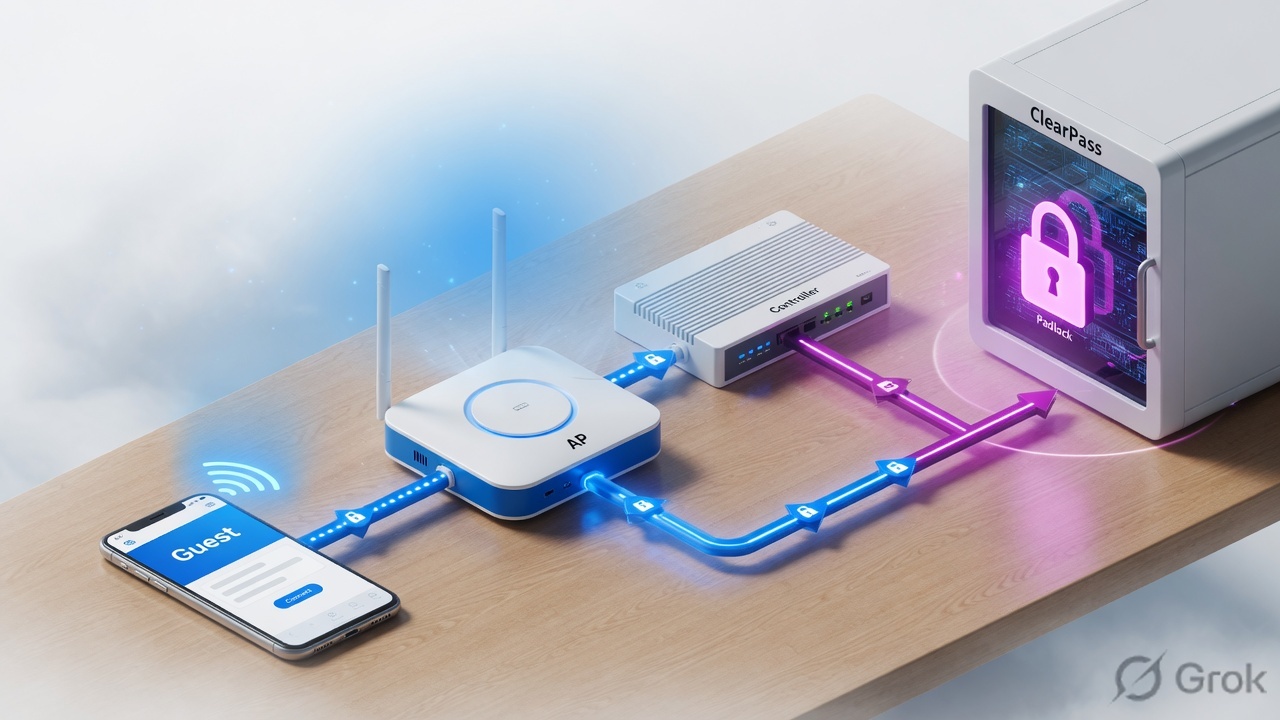

Hero · guest path needs a trusted padlock
Guest phone reaches a wireless AP, then a controller, then a ClearPass guest portal with a padlock
The visitor never talks RADIUS. The visitor talks HTTPS to a name. That name must match the certificate ClearPass presents on 443.

Two certificates, one guest

Train this as two padlocks, not one. Airheads MVPs keep repeating the same split because operators keep installing only one of them.

Certificate 1 — ClearPass HTTPS Server Certificate. This is the object you create in this lesson. The guest browser opens the Guest Web Login URL hosted on ClearPass. The FQDN on this certificate must resolve for the guest and must be reachable from the guest VLAN. Cisco’s 9800 + ClearPass guest guide calls this the “CPPM Web Server Certificate (HTTPS)” used when the Guest Portal is presented over HTTPS.

Certificate 2 — controller Captive Portal Certificate. On ArubaOS this is bound under System → More → General → Captive Portal Certificate. The controller intercepts the name on that cert. That FQDN should not be in public DNS. If you leave the factory name, guests hit securelogin.arubanetworks.com or securelogin.hpe.com and the warning is the default Aruba leaf, not your ClearPass work.

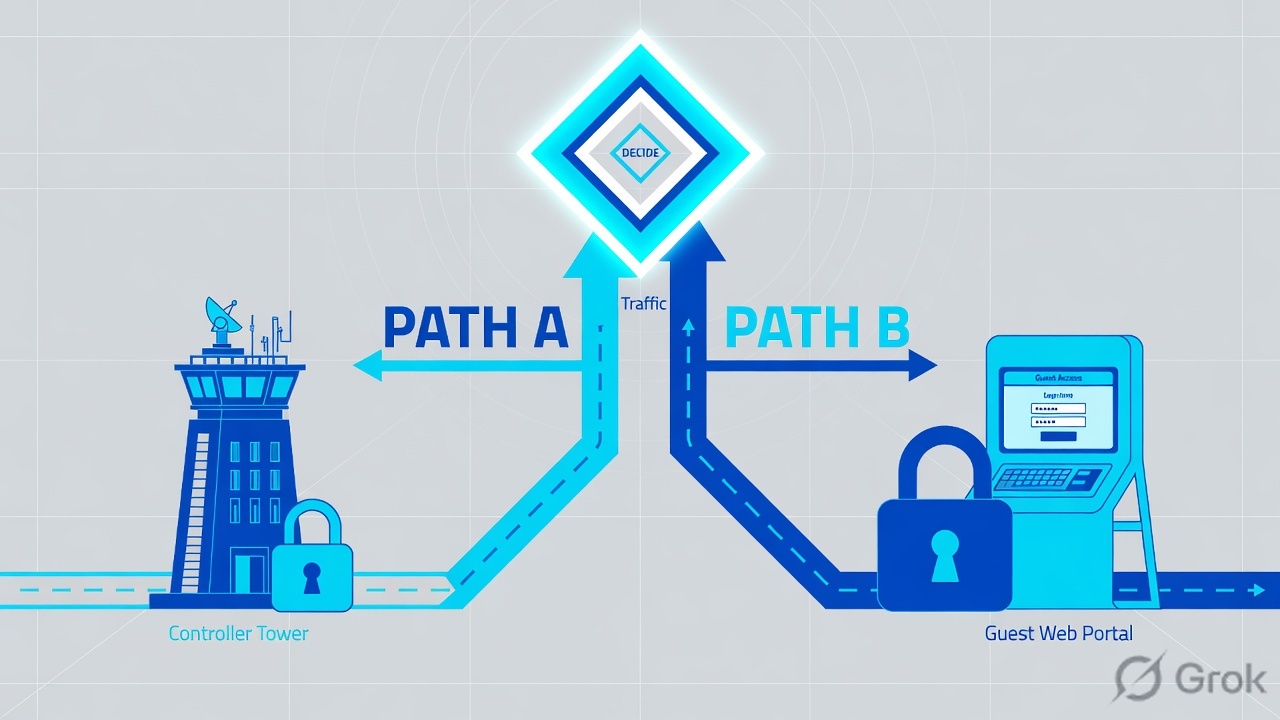

Decision feel · Path A controller · Path B ClearPass
Two certificate paths split from one guest session
Path A is the controller intercept name. Path B is the ClearPass Guest URL. Public-CA both, for different reasons.
Flow 1 · which padlock is on which box
Guest phone trusts public CAs AP / NAS redirect ACL Controller cert Captive Portal Certificate FQDN not in public DNS ClearPass HTTPS HTTPS Server Certificate FQDN must resolve Guest Web Login https://guest.techclick-lab.in /guest/…

Read left → right. Diamond in your head: “Is this the name the phone typed, or the name the controller intercepted?”

Say this out loud

ClearPass HTTPS cert = the page the guest sees. Controller captive-portal cert = the name the controller intercepts for the POST. Public CA on both. Guest DNS only needs the ClearPass name.

Hard words before the menus

HTTPS Server Certificate — ClearPass usage for the web UI and Guest HTTPS. Separate from RADIUS/EAP Server Certificate (802.1X). Trust List — CAs ClearPass itself trusts and, for the presented chain, the intermediates you import. SAN — Subject Alternative Name; modern browsers match the URL here, not only CN. CPD — captive portal detection; phones probe an HTTP URL, not HTTPS, so they can pop the portal without a name-mismatch warning.

How to choose the CA

The flowchart is the decision. The table is the “why.” Do not start a CSR until this box is honest.

Flow 2 · public CA, internal PKI, or HTTP-only
Who is the guest? stranger phone vs corp laptop Trusts your internal CA? Internal PKI is OK managed devices only Public CA required visitor / BYOD guest HTTP-only fallback no public cert yet (HPE) Never do this publish CPPM to Internet Yes No Lab / temp

A public guest SSID is the “No” branch. Internal CA on that SSID is why visitors see NET::ERR_CERT_AUTHORITY_INVALID.

OptionUse whenGuest browserDo not use when
Public CA (DigiCert, Sectigo, Let’s Encrypt, …) Visitor / BYOD guest portal over HTTPS Already trusts the root You only have a .corp.intra name — public CAs will not sign that
Internal PKI Corp-managed Onboard / 802.1X devices that already trust your root Trusts only if the root is installed Open guest SSID with stranger phones
Self-signed default Lab only Always warns Any production guest
HTTP-only Guest Temporary, per HPE SF000093964, until a public cert exists No TLS warning; credentials in clear on the guest VLAN You can already install a public cert — then use HTTPS
Unsafe path

Do not put ClearPass on a public IP “so the cert will work.” Carson Hulcher (Airheads): guests must reach ClearPass, but do not expose ClearPass directly to the Internet. Route the guest VLAN to a ClearPass data/guest interface. Make guest DNS resolve guest.techclick-lab.in to that private address.

Runbook — create and bind the cert

Source for the click path: Cisco 217931 (CPPM Web Server Certificate) plus the official Importing a Server Certificate page. Dummy lab names only.

Lab objects · dummy only

Guest FQDN guest.techclick-lab.in · ClearPass guest IP 10.80.10.10 · Admin name clearpass.corp.intra · Web Login page /guest/iaccept.php · Not a live customer.

Side A — name, DNS, reach (before any CSR)

  1. Pick the public name guests will open

    Use a name you can put on a public certificate, for example guest.techclick-lab.in. Do not use clearpass.corp.intra for visitors. Public CAs will not issue .intra / .local, and guest phones will not resolve your internal zone.

  2. Set the ClearPass FQDN you will put on the cert

    Path: Administration → Server Manager → Server Configuration → select the node. Cisco’s guide sets Hostname / FQDN here before the CSR. If admin staff still use clearpass.corp.intra, put both names in SAN — replacing HTTPS also replaces the admin GUI certificate.

  3. Make guest DNS and the pre-auth ACL agree

    Guest DNS (often the public resolver on the isolated VLAN) must return 10.80.10.10 for guest.techclick-lab.in. The redirect ACL / role must allow DNS plus TCP 443 to that address. If the phone cannot open 443, the nicest certificate in the store is unused.

  4. NTP on ClearPass, NAS, and a test phone

    Cisco 217931 lists NTP as a prerequisite. A five-minute skew is enough for “certificate is not yet valid.”

Primary source: Cisco 217931 — Server Hostname + Generate CPPM Web Server Certificate.

Side B — Trust List, CSR, sign, import

https://clearpass.corp.intra/tips · Certificate Store
Training mock · not live

Administration / Certificates / Certificate Store / Server Certificates

Create Certificate Signing Request

CPPM-PUB (10.80.10.10)
HTTPS Server Certificate
guest.techclick-lab.in
Techclick Lab
DNS:guest.techclick-lab.in,DNS:clearpass.techclick-lab.in,IP:10.80.10.10
CancelCreate CSR

Next click: copy the CSR, sign it at the public CA, then Import Certificate on the same Usage. Source: Cisco 217931 SAN format DNS:<fqdn>,IP:<ip>.

  1. Import the CA chain first

    Path: Administration → Certificates → Trust List → Add. Enable usage Others. Add the public root and the issuing intermediate. Cisco 217931 does this before the CSR. If you skip it, import of the leaf often fails or the browser still shows “certificate authority invalid.”

  2. Open the HTTPS usage, not RADIUS/EAP

    Path: Administration → Certificates → Certificate Store → Server Certificates. Set Select Server to the node you are changing. Set Usage to HTTPS Server Certificate. RADIUS/EAP is the 802.1X leaf. A perfect public cert on the wrong usage leaves Guest on the factory self-signed.

  3. Create the CSR

    Click Create Certificate Signing Request. Common Name = the guest FQDN. Cisco also requires that name in SAN. Lab SAN string:

    SAN · dummy
    DNS:guest.techclick-lab.in,DNS:clearpass.techclick-lab.in,IP:10.80.10.10

    Public CAs often refuse private IPs — drop the IP: part if the CA rejects it. Keep every DNS name the browser might show in the address bar.

  4. Sign the CSR at the public CA

    Download the leaf plus intermediates. Prefer a PEM chain (leaf first, then intermediates) or a PKCS#12 that already contains the key.

  5. Import onto the same usage

    Click Import Certificate. Certificate Type: Server Certificate. Usage: HTTPS / HTTP Server Certificate (Cisco 217931 uses “HTTP Server Certificate” on the import screen). Official import options:

    • Upload PKCS#12 (.pfx / .p12) + passphrase. On a cluster, HPE says this passphrase is the cluster password.
    • Upload Certificate and Private Key Files if you created the key outside ClearPass.
    • Certificate only if the CSR was created on this node — ClearPass matches the on-box private key.

Primary source: ClearPass 6.11 — Importing a Server Certificate.

https://clearpass.corp.intra/tips · Import Certificate
Training mock · not live

Administration / Certificates / Certificate Store / Import Certificate

Import Certificate

Server Certificate
HTTPS Server Certificate
Upload PKCS#12 Certificate (.pfx or .p12 only)
guest-techclick-lab.p12
•••••••• (cluster password)
CancelImport

Next click: confirm the new leaf is listed under HTTPS Server Certificate for this node, then open Guest Web Login over HTTPS. Source: HPE Importing a Server Certificate.

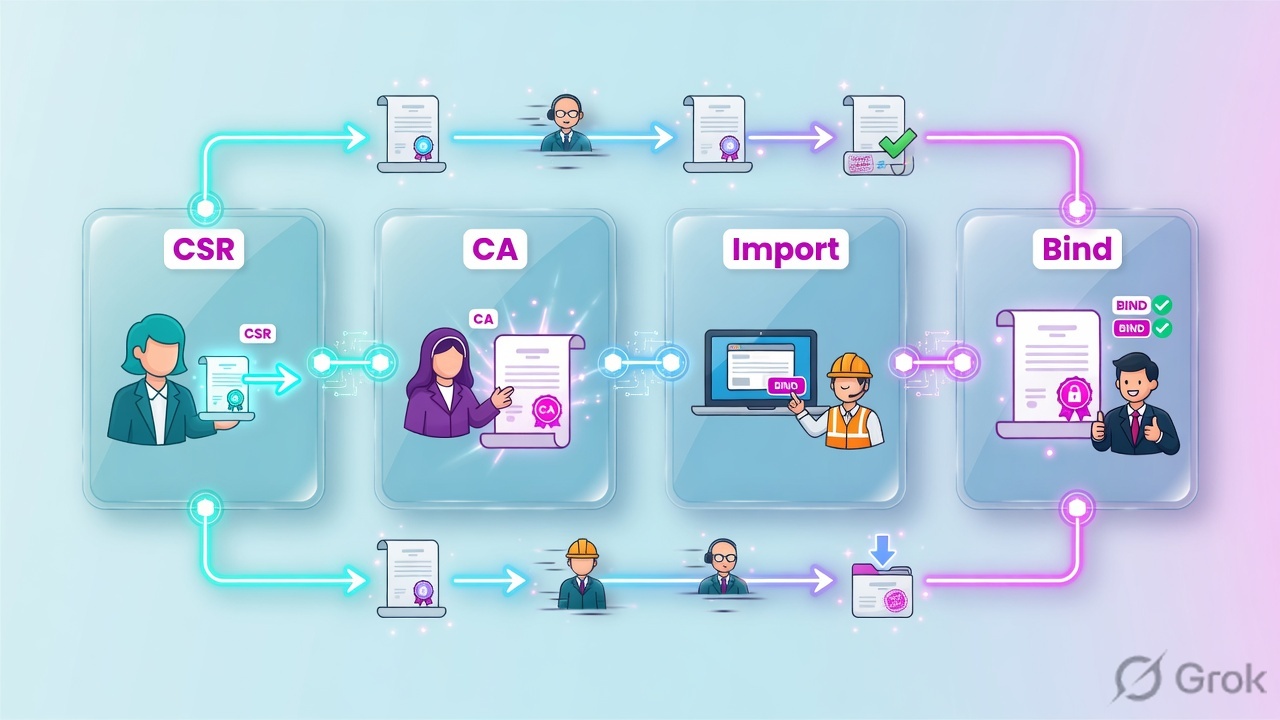

Pipeline feel · CSR → CA → Import → Bind
Four-stage certificate pipeline from CSR to bind
If any panel is skipped, the phone still sees the factory leaf. Import is not optional decoration after the CA email arrives.

Side C — Guest HTTPS, controller cert, cluster

  1. Point the Web Login at the certified name

    Path: Guest → Configuration → Pages → Web Logins → edit the page. The live URL guests open must be https://guest.techclick-lab.in/guest/…, not the management IP and not http:// if you promised HTTPS. HPE SF000093964: Guest over HTTPS without a well-known CA cert is the warning you already have.

  2. Fix the NAS redirect URL

    The RADIUS url-redirect (or Aruba captive-portal profile) must use the same FQDN as SAN. A policy that still sends https://10.80.10.10/guest/… will warn even with a perfect DNS name on the cert.

  3. Replace the controller captive-portal leaf if you still see securelogin.*

    Upload a public cert on the controller and bind it under System → More → General → Captive Portal Certificate. Wildcard *.techclick-lab.in is commonly expanded to a login name such as captiveportal-login.techclick-lab.in — use that name in the ClearPass vendor settings if the controller is doing the credential POST.

  4. Repeat per ClearPass node

    Certificate Store is per server. Publisher and each subscriber need their own HTTPS leaf (or a carefully planned multi-SAN / wildcard). PKCS#12 import on a cluster uses the cluster password.

Primary source: HPE SF000093964 + Airheads guest-portal certificate thread.

What happens after go-live

After the cert is bound, the guest path is no longer “open any HTTPS and hope.” It is a name match plus a reachability match.

Flow 3 · runtime after the cert is live
Associate MAB / open SSID HTTP CPD OS captive probe Redirect to FQDN guest.techclick-lab.in TLS to ClearPass SAN + public chain AUP / login → CoA then internet, no warn If TLS fails here, Access Tracker can still be Accept.

Policy Accept only proves RADIUS. The padlock is a separate conversation on TCP 443.

Ops · prove the padlock from the guest VLAN
Operations desk verifying a trusted guest portal certificate
Proof is a guest-VLAN browser (or curl) to the real FQDN, not an admin laptop on the management network.

Traps + proof

What you seeUsual causeFirst fixGreen proof
NET::ERR_CERT_AUTHORITY_INVALID on the Guest URL Self-signed / internal CA / missing intermediate Public CA leaf + Trust List intermediates + full chain presented Phone padlock; openssl s_client shows leaf + intermediate
Name mismatch: URL is guest.techclick-lab.in, cert is clearpass.corp.intra CSR SAN/CN does not include the redirect FQDN New CSR; SAN includes every name the browser displays Chrome lock details show the guest FQDN in SAN
Admin GUI is trusted, Guest still warns You are hitting two different names, or RADIUS/EAP usage was updated instead of HTTPS Certificate Store → this node → Usage HTTPS Server Certificate Same leaf on https://guest…/guest/… as on Certificate Store
Warning only when the user typed https://bank.example.com before login Controller intercept cannot present bank.example.com’s cert Not a ClearPass cert bug. CPD uses HTTP. Educate / allow the OS probe OS captive sheet opens without a warning; only random HTTPS is ugly
Default securelogin.hpe.com warning Controller still using the factory captive-portal leaf Bind a public Captive Portal Certificate on the controller Intercept name is your FQDN, not securelogin.*
Portal never loads; cert looks fine from admin PC Guest VLAN cannot reach ClearPass:443, or guest DNS has no record Pre-auth ACL + guest DNS A record to the guest-facing IP From a guest-VLAN client: TCP 443 open and DNS matches SAN
Pilot checklist
Proof · dummy host
curl -vk https://guest.techclick-lab.in/guest/iaccept.php
# expect: subject CN or SAN = guest.techclick-lab.in
# expect: verify return code 0 after the public chain is in the trust store
# expect: issuer is the public intermediate, not "ClearPass Self Signed"
Weak vs strong interview

Weak: “Install an SSL cert on ClearPass.” Strong: “Guest browsers validate the HTTPS Server Certificate against the redirect FQDN. That leaf must be public-CA signed, SAN-aligned, and reachable on the guest VLAN. The controller has a second captive-portal certificate whose name is intercepted and should not be in DNS. Access Tracker Accept does not prove the padlock.”

Knowledge check

Six judgment items. Use a guest-phone mindset, not an admin-laptop mindset.

Q1

What is the ClearPass object people mean by “captive certificate”?

Correct: b. Re-read Two certificates. The controller cert is a second object. RADIUS/EAP is 802.1X.
Q2

You imported a public cert. Guests still warn. The URL is https://guest.techclick-lab.in/guest/…. The leaf CN is clearpass.corp.intra.

Correct: c. Re-read Side B CSR and the name-mismatch row in Traps.
Q3

Guest VLAN uses a public resolver and an isolated internet line. A colleague wants to NAT ClearPass to a public IP so “the cert will work.”

Correct: a. Re-read How to choose and the Airheads “do not expose ClearPass” note.
Q4

Access Tracker is Accept. You imported the signed file under Usage: RADIUS/EAP Server Certificate. Guests still see the factory warning.

Correct: d. Re-read Side B step 2. Usages are separate store slots.
Q5

openssl s_client shows only the leaf. Chrome: NET::ERR_CERT_AUTHORITY_INVALID. The CA is a well-known public brand.

Correct: b. Re-read Side B step 1 and the first traps row. Phones do not fetch missing intermediates the way some desktops do.
Q6

The Guest page itself is trusted. Before login, a user who typed https://bank.example.com still gets a certificate warning.

Correct: c. Re-read Two certificates and the bank.example.com traps row. Do not “fix” this by stuffing random hostnames into SAN.
