Akamai CDN and Property Manager — Edge Hostname, Cache Proof and the CLI Ladder

Akamai is not a black box in front of your origin. A property hostname CNAMEs to an edge hostname, the edge reads a Property Manager rule tree, cache either hits or fetches origin, and every one of those steps has a command that proves it. This lesson is the platform map plus the CLI you use on a live ticket.

📅 2026-08-24 · ⏱ 18 min · 8 teaching images · CLI labs

Quick Answer

Akamai CDN delivery is two TLS hops, not one: the client connects to the nearest edge using an edge hostname (usually a CNAME from the property hostname to *.edgekey.net), then the edge applies a Property Manager rule tree and either serves cache (TCP_HIT) or fetches the origin hostname. Prove the path with dig plus curl Pragma headers, activate on staging before production, and purge by cache key (ARL) when content is stale.

By the end you will be able to

In this lesson

1

What the edge is

Two connections, three hostnames, one CNAME.

 2

Property Manager

Rule tree, Ion, CP codes, activate.

 3

Cache and origin

HIT/MISS, Site Shield, purge, extras.

 4

CLI runbook

dig, Pragma, activate, Fast Purge.

Most engineers think…

Most people describe Akamai as 'the CDN in front of the site' and stop. That sentence is true and useless on a bridge call. The ticket is always more specific: the hostname is not on the edge, the edge is reaching the wrong origin, the object is not cacheable, or yesterday's HTML is still in cache.

The working model is operational: three hostnames, two TLS connections, a versioned property that must be activated, and a small set of response headers that tell you whether the edge served cache or went to origin. If you cannot name those, you will debug the origin while the fault is still in DNS.

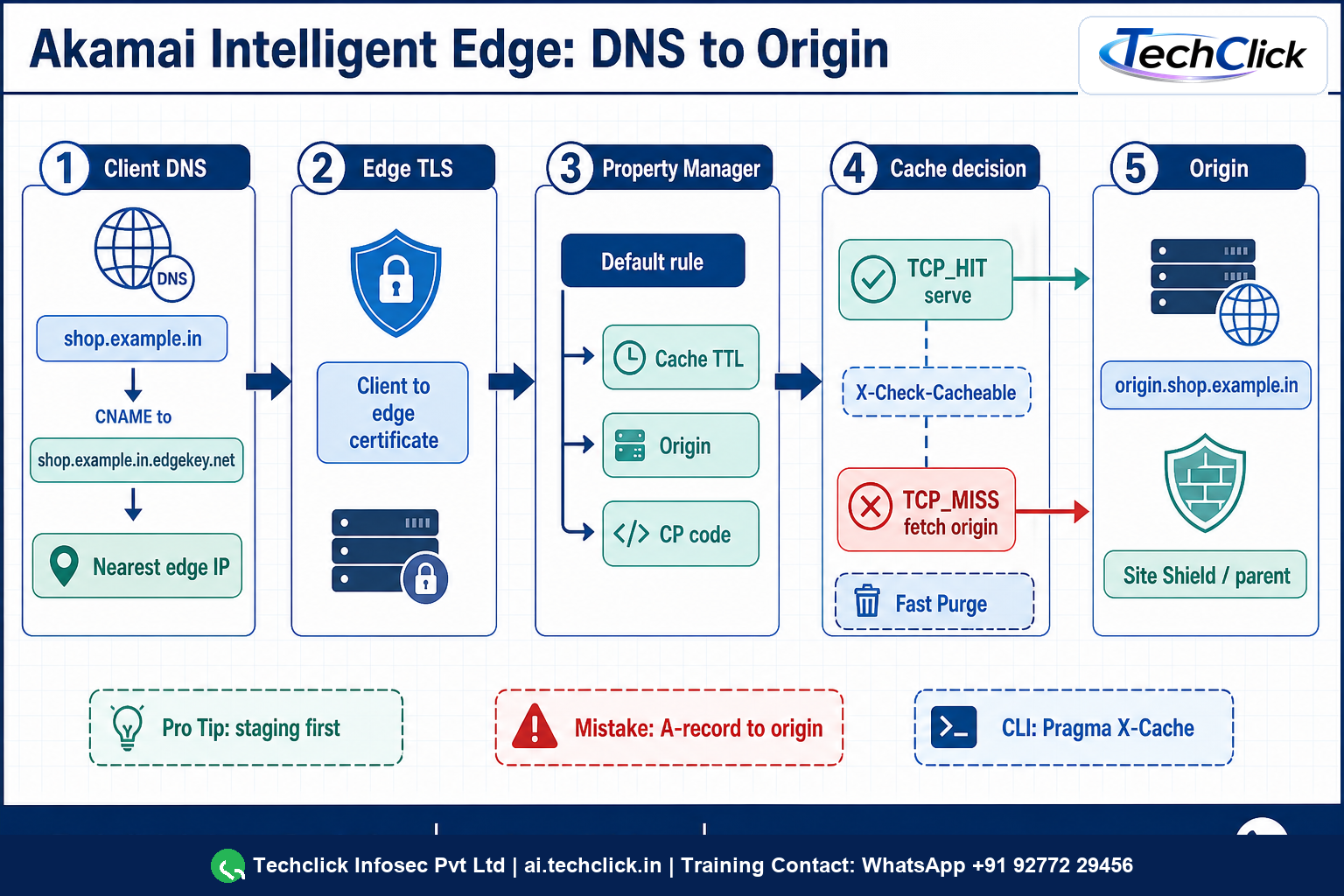

Akamai Intelligent Edge — DNS to origin infographic
Techclick infographic of the Akamai CDN path: property hostname CNAME to edge hostname, Property Manager rules, cache HIT or origin fetch.
Start here: three hostnames, two TLS hops, then cache versus origin. The CLI lesson below proves each hop.

① What Akamai Intelligent Edge actually is — two hops, three names

Akamai's delivery platform is a global anycast edge. A user never needs to know that. You do, because every outage sits on one of two connections: client to edge, or edge to origin.

Keep three names distinct. The property hostname is what browsers request. The edge hostname is the CNAME target that puts the site on the Akamai network. The origin hostname is where your servers actually live. Public DNS for the property hostname must be a CNAME to the edge hostname. If you leave an A/AAAA to the origin, users bypass Akamai entirely.

Lab names used below (illustrative, not a live tenant): shop.example.in → shop.example.in.edgekey.net → nearest edge IP, while the edge fetches origin.shop.example.in. Enhanced TLS edge hostnames use *.edgekey.net; Standard TLS uses *.edgesuite.net.

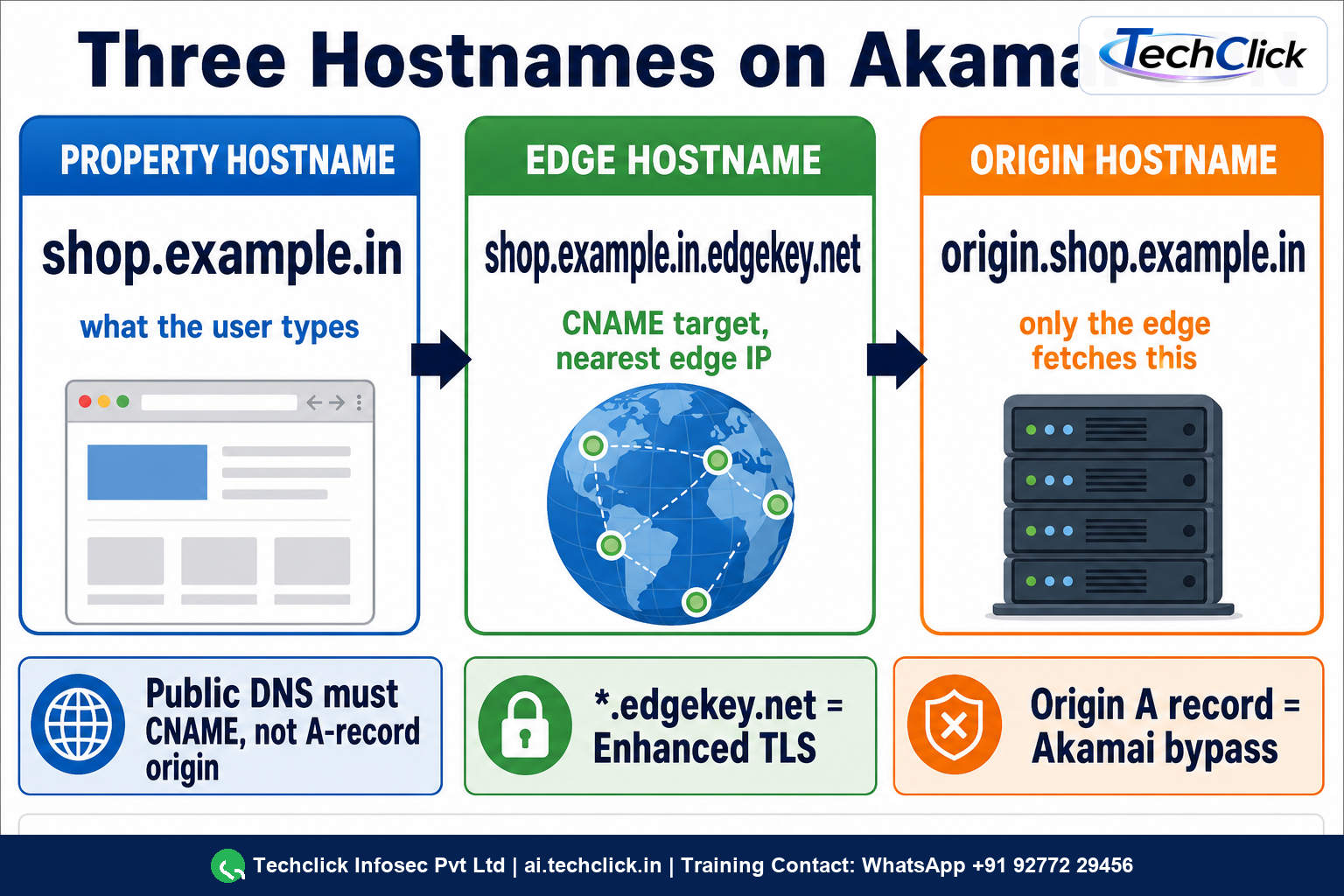

Visual — three hostnames, one CNAME
Three-column diagram of Akamai CDN hostnames: shop.example.in, shop.example.in.edgekey.net, and origin.shop.example.in, with CNAME versus origin A-record callouts.
If public DNS A-records the origin, Property Manager, cache and WAF never see the request.

② Property Manager — the rule tree the edge actually runs

Property Manager is the configuration that edge servers load after DNS lands the request. A property is a versioned container: hostnames, a rule tree, and product behaviours (Ion adds performance defaults; other products change the behaviour catalogue). You edit a version, then activate it to staging or production. An unactivated edit is a draft. A live site does not see it.

Rules, matches, behaviours, CP codes

The tree is IF/THEN. A match is the IF (path, file extension, hostname, request header). A behaviour is the THEN (origin server, caching TTL, redirect, HTTPS). There is always a Default Rule that matches everything. Nested child rules can override parents; Akamai documents trees up to five levels, with more specific children applying before the parent when both match. Every property needs at least one CP code in the default rule.

Ion is the common web/app delivery product sitting on this same Property Manager model, with Adaptive Acceleration and cellular optimisation behaviours already in the tree. Includes are reusable rule snippets you version separately. Metadata on the network is the compiled XML of the activated version — that is why 'I saved it in Control Center' is not the same as 'production is running it'.

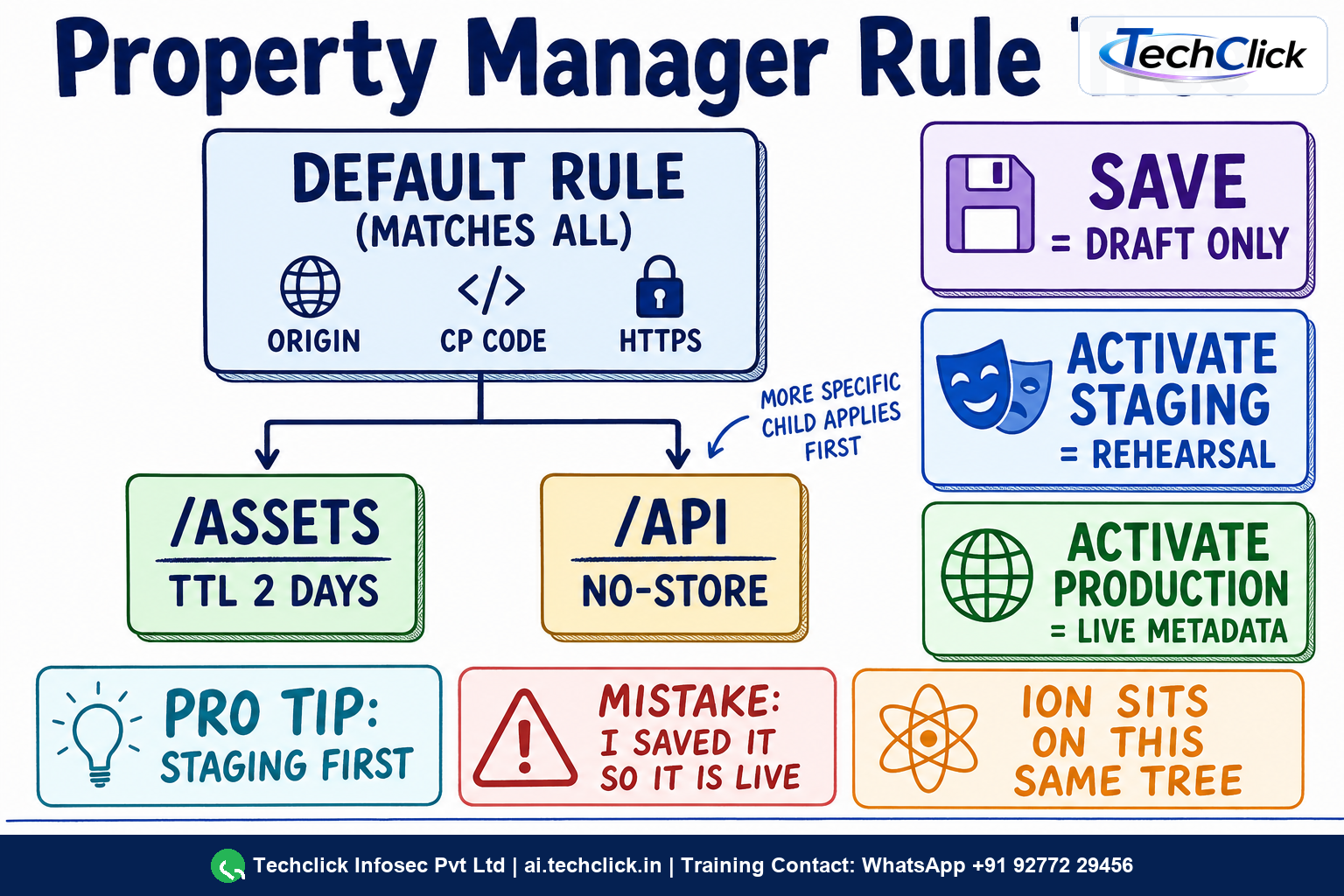

Visual — Property Manager is a tree, not a save button
Property Manager rule tree showing Default Rule with origin, CP code and HTTPS, child rules for /assets and /api, and save versus staging versus production activation.
A saved version is a draft. Staging is the rehearsal. Production activation is what the live edge runs.
Staging is a different edge, not a flag on production

A staging activation plus a hosts-file or staging edge hostname shows X-Akamai-Staging. Production curl will still show the old version until you activate production. Prove with headers, not with 'it looked fine in Control Center'.

③ Cache, origin, Site Shield and the extras that ride the same path

On a cacheable GET, the edge looks up a cache key (ARL). TCP_HIT / TCP_MEM_HIT means the object was fresh in cache. TCP_MISS means the edge (or a parent) fetched origin. X-Check-Cacheable: YES|NO answers the prior question: was this even allowed to be stored? A MISS on a NO is not a CDN failure; it is the property telling the edge not to cache.

Tiered Distribution and Site Shield insert a parent layer so origin sees a small, stable set of Akamai IPs instead of the whole edge. When that is on, X-Akamai-Request-ID can look like {parent-id}.{child-id} and X-Cache-Remote tells you how the parent served. Origin ACLs must allow the Site Shield map, not random edge IPs.

Same path, different products

WAF (App & API Protector) is a security configuration bound to the same hostname. It is not this property. Mixing 'I changed the property' with 'I changed WAF' is the classic Bengaluru ecommerce ticket that wastes an hour.

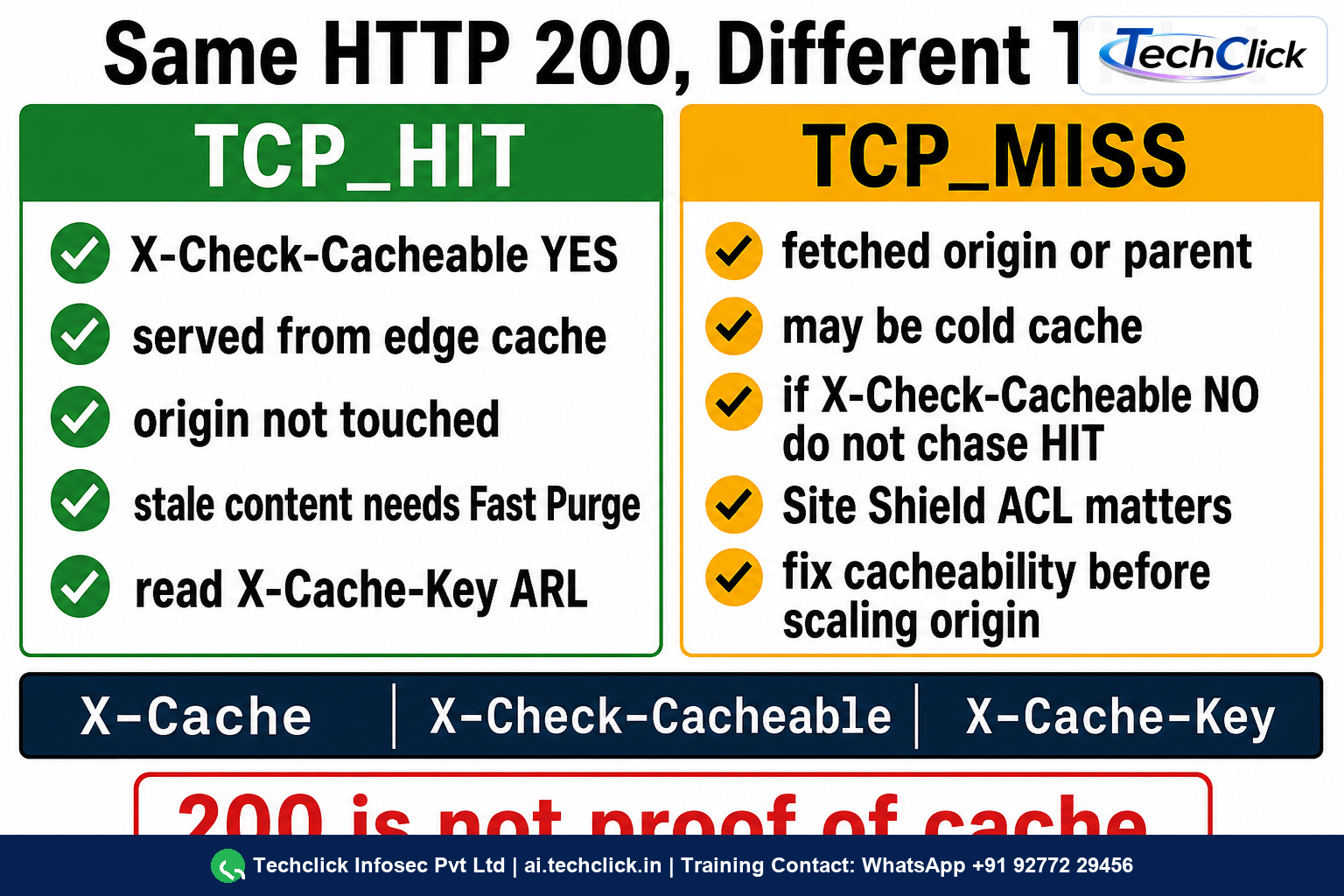

Visual — TCP_HIT versus TCP_MISS on the same 200
Comparison board of TCP_HIT versus TCP_MISS with X-Cache, X-Check-Cacheable and X-Cache-Key evidence.
HTTP 200 does not tell you whether origin was touched. Read X-Cache together with X-Check-Cacheable.
Treating TCP_MISS as a CDN outage

MISS means origin (or a parent) was consulted. If X-Check-Cacheable is NO, the property is working as designed. If MISS is unexpected on a static asset, fix TTL and cache key, do not scale origin first.

④ CLI troubleshooting — prove DNS, prove cache, then change

Walk the ladder in order. Do not purge, and do not activate production, until the evidence names the layer.

1. Did DNS send the user to Akamai?

Lab — dig the property hostname
dig +short shop.example.in CNAME
dig +short shop.example.in.edgekey.net A
Sample output (illustrative)
shop.example.in.edgekey.net.
23.45.67.89

If CNAME is missing and you get an origin A record, the edge is not in path. Fix DNS before you touch Property Manager.

2. Did this request hit the edge, and was it cached?

Legacy Pragma still works on many properties. Prefer Enhanced Debug with a time-limited Akamai-Debug token when that behaviour is on — it maps cache to the same family of response headers.

Lab — Pragma cache debug
curl -sSI https://shop.example.in/assets/app.css \
  -H 'Pragma: akamai-x-cache-on, akamai-x-cache-remote-on, akamai-x-check-cacheable, akamai-x-get-cache-key, akamai-x-get-true-cache-key, akamai-x-get-request-id'
Sample response headers
HTTP/2 200
server: AkamaiGHost
x-cache: TCP_HIT from a23-45-67-89.deploy.akamaitechnologies.com (AkamaiGHost/11.4.0)
x-check-cacheable: YES
x-cache-key: /L/123456/2d/shop.example.in/assets/app.css
x-akamai-request-id: 1a2b3c4d
Header / valueWhat it proves
TCP_HIT / TCP_MEM_HITFresh object served from edge cache
TCP_MISSNot in cache; fetched from origin or parent
TCP_REFRESH_MISSStale; origin returned a new object
X-Check-Cacheable: NOProperty (or origin headers) forbids cache — do not chase HIT
X-Cache-KeyARL: serial, CP code, TTL token, path — use this to purge
X-Akamai-StagingYou are on staging (ESSL or EdgeSuite), not production

3. Activate and purge without guessing

Lab — property CLI then Fast Purge by ARL
akamai property-manager list-properties
akamai property activate --property shop.example.in --version 18 --network staging --note 'cache TTL 2d for /assets'
# After staging proof, same version to production.
akamai purge invalidate --arl '/L/123456/2d/shop.example.in/assets/app.css'

Staging first is not ceremony. Production activation distributes metadata globally. Fast fallback exists, but you should not need it because you already proved the version on staging with the same curl. If X-Check-Cacheable is YES and users still see yesterday's file, purge the ARL — URL purge misses when the cache key is not the public URL.

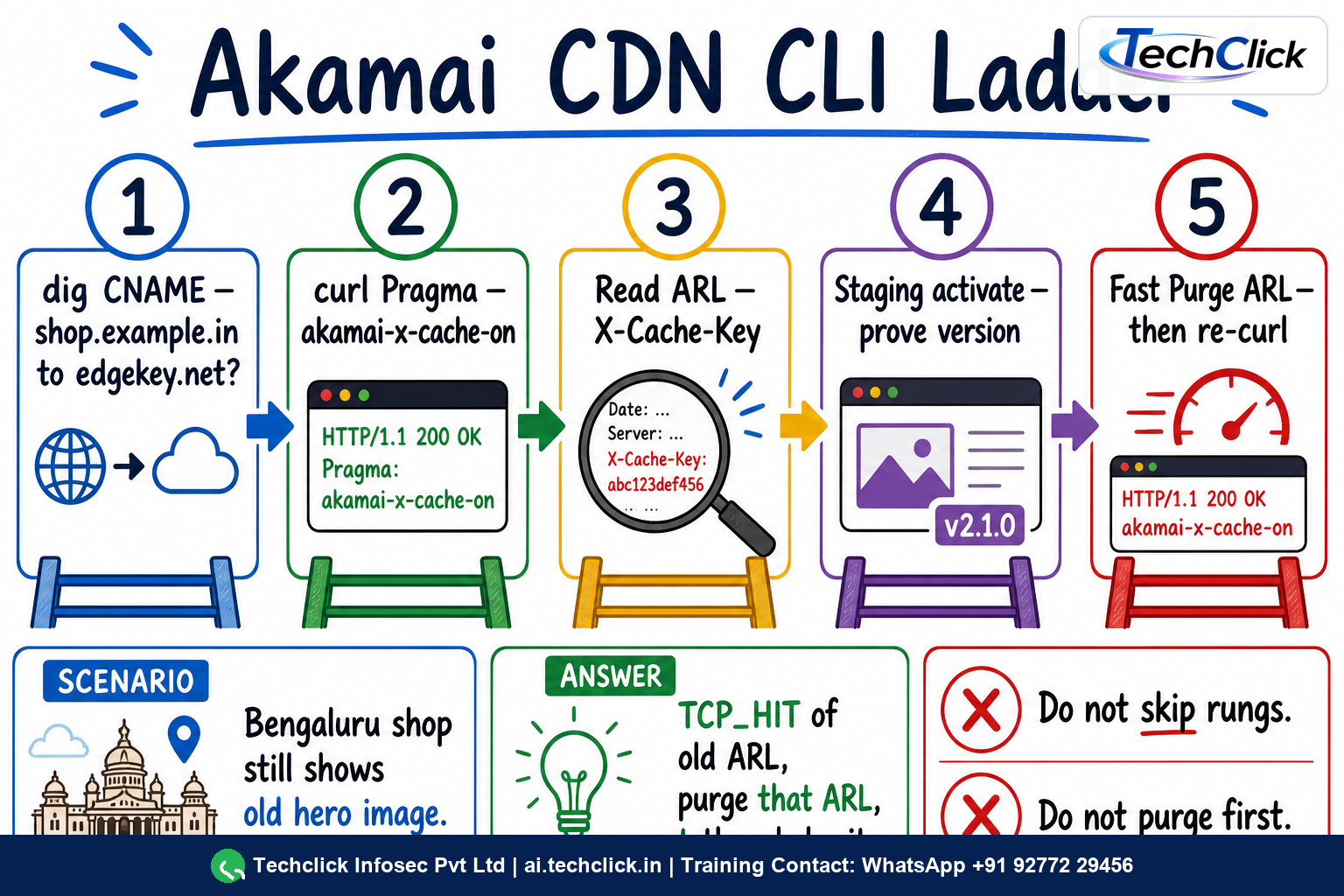

Visual — CLI ladder before you purge
Five-step Akamai CDN CLI ladder: dig CNAME, curl Pragma, read ARL, staging activate, Fast Purge ARL, then re-curl.
Meera's stale hero image is a TCP_HIT of an old ARL. Purge that ARL. Do not purge the whole site first.

Meera at a Bengaluru ecommerce shop faces this

After a sale banner change, desktop users in India still see yesterday's homepage hero. Origin already has the new image. Mobile on a different subdomain looks fine.

Likely cause

shop.example.in is on Akamai with a long TTL on /hero/*. Origin was updated; the edge still has a TCP_HIT for the old ARL. The team A-recorded a test name to origin, so they thought the CDN was updated.

Diagnosis

dig shop.example.in CNAME still points at shop.example.in.edgekey.net. curl with Pragma shows TCP_HIT and X-Cache-Key /L/123456/2d/shop.example.in/hero/festive.jpg. X-Check-Cacheable is YES.

dig CNAME → curl Pragma → read X-Cache-Key → Fast Purge ARL → re-curl
Fix

akamai purge invalidate of that ARL (or cache tag if tagged). Do not purge the whole site. Confirm a TCP_MISS of the new bytes, then subsequent TCP_HIT. Leave origin ACLs and Site Shield untouched.

Verify

Repeat curl from a second resolver: new Content-Length, TCP_HIT after the first MISS, X-Cache-Key unchanged path with fresh object. Staging is not required for a purge-only fix.

Pragma / Akamai-Debug is the proof, not the homepage screenshot

A browser screenshot cannot tell HIT from MISS. Capture X-Cache, X-Check-Cacheable, X-Cache-Key and X-Akamai-Request-ID in the ticket. If Enhanced Debug is enabled, pass the token; do not leave debug wide open on production.

📖 Glossary

Property hostname
The public FQDN users request. Bound to one property and one edge hostname.
Edge hostname
Akamai CNAME target (typically *.edgekey.net or *.edgesuite.net) used for mapping to an edge IP.
Origin hostname
Hostname only Akamai uses to fetch your servers after go-live.
Property Manager
Versioned rule tree of matches and behaviours the edge executes after DNS.
CP code
Content Provider code for billing and reporting; required on the default rule.
ARL / cache key
Akamai Resource Locator in X-Cache-Key; the precise object identity for Fast Purge.
TCP_HIT / TCP_MISS
X-Cache values: served from cache versus fetched from origin or a parent.
Site Shield
Parent layer that shrinks origin ACLs to a published Akamai IP map.
Enhanced Debug
Tokenised Akamai-Debug request header that returns cache and related debug response headers.
